NAD C 328 HYBRIDDIGITAL DAC AMPLIFIER

NAD C 328 HYBRIDDIGITAL DAC AMPLIFIER

$849.00

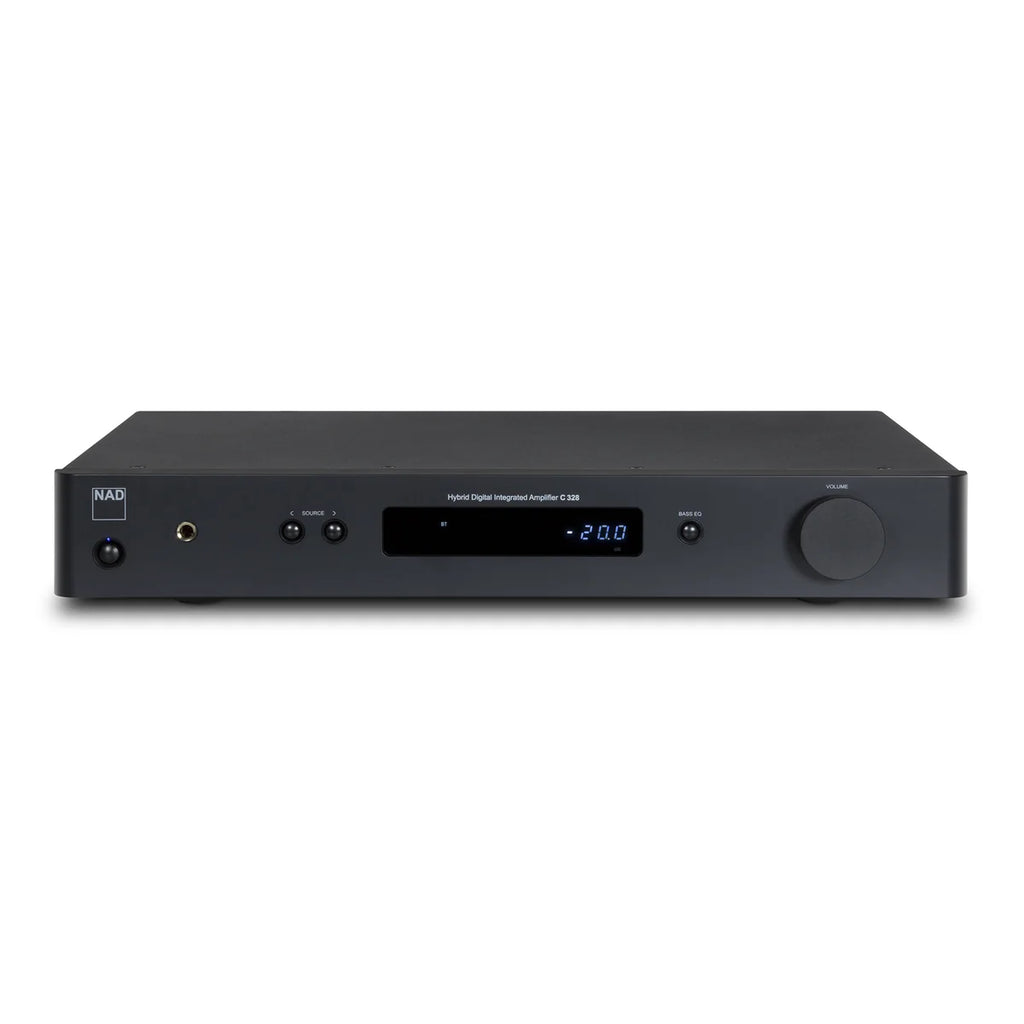

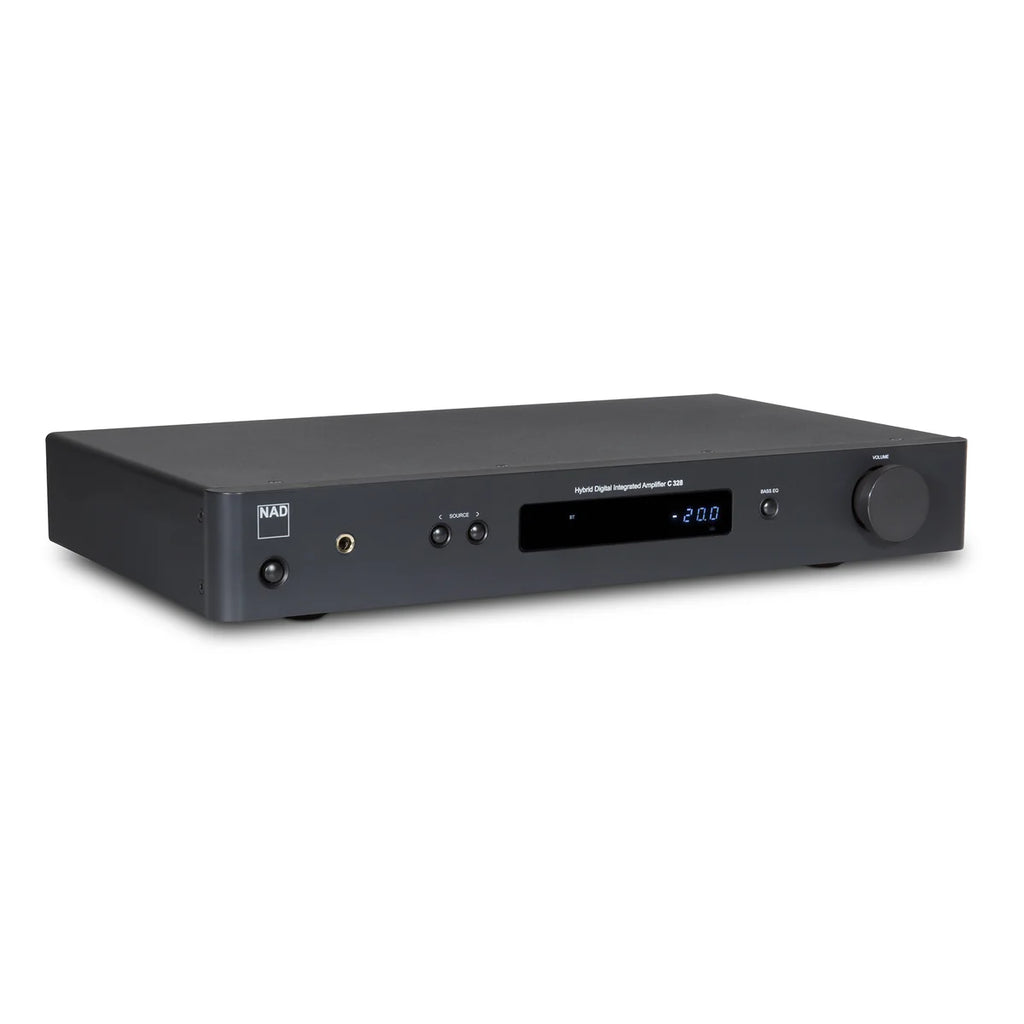

The NAD C 328 HybridDigital DAC Amplifier makes it easy to build a clean, modern hi-fi system with the musicality and precision NAD is known for. Its 50 Watts per channel HybridDigital UcD design delivers detailed, low-noise performance, while the built-in phono stage brings new clarity to vinyl playback. Support for Bluetooth adds simple wireless streaming, and versatile analogue and digital inputs make integration effortless. Compact and thoughtfully designed, the C 328 is an ideal first step into true high-fidelity sound.

Key Features:

  • 50 Watts per channel of HybridDigital UcD amplification into 8 or 4 ohms
  • High-performance DAC stage for clear, low-noise digital playback
  • Built-in MM phono input with accurate RIAA equalisation
  • Bluetooth support for simple wireless music streaming

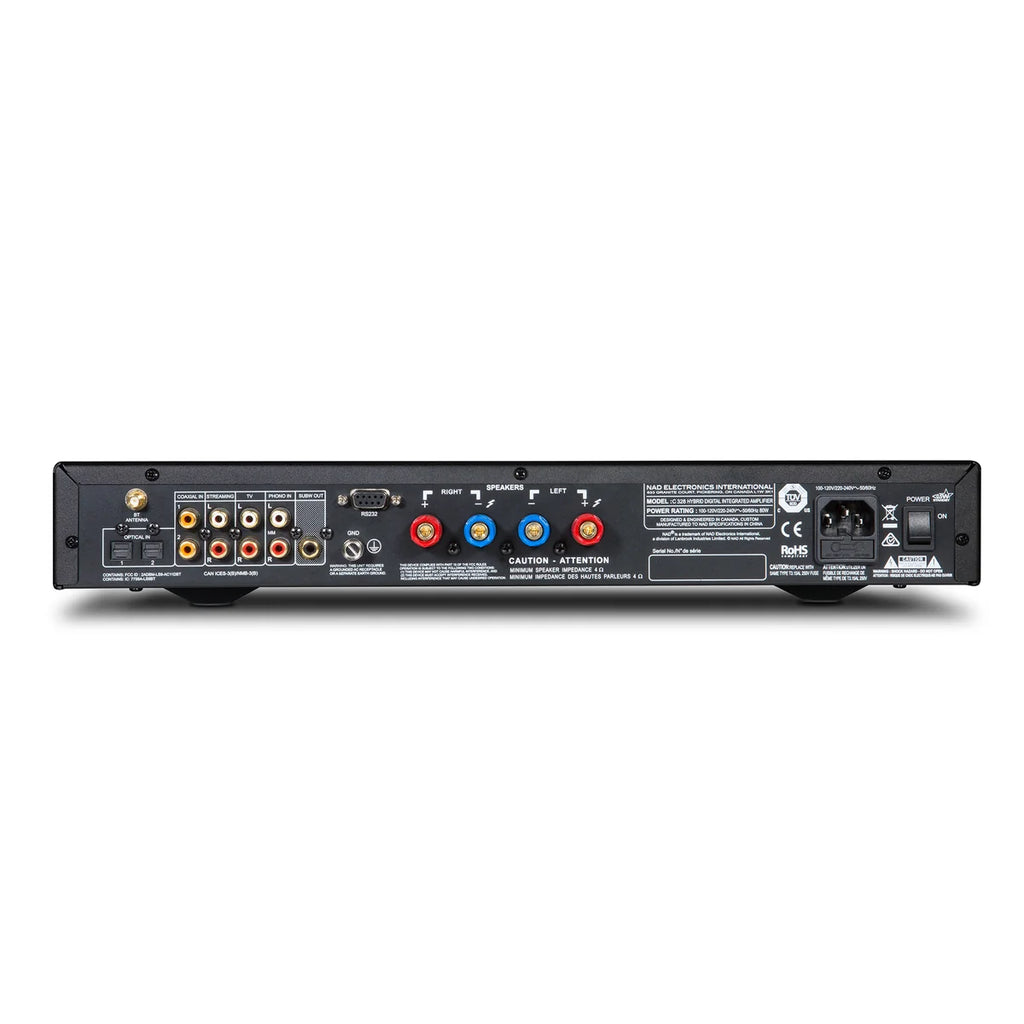

  • Analogue and digital inputs for easy system integration
  • Separate headphone amplifier with high output capability
  • Subwoofer output for expanding low-frequency performance
  • Low-noise circuitry with precise digital volume control
  • Auto standby, Eco mode, and low power consumption
  • Compact, lightweight design suitable for small hi-fi systems

Analogue In/Headphone Out
Continuous output power into 8 Ohms and 4 Ohms 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz) <0.005 % at 1 V out
Signal-to-Noise Ratio >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
Frequency response ±0.3 dB (20 Hz - 20 kHz)
Output impedance 11 ohms

Analog In/Subwoofer Out
THD (20 Hz – 20 kHz) <0.005 % at 1 V out
Signal-to-Noise Ratio >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
Frequency response ±0.2 dB (20 Hz - 20 kHz)
Output impedance 200 ohms

Analog In/Speaker Out
THD (20 Hz – 20 kHz) <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
Frequency response ±0.3 dB (20 Hz - 20 kHz)

Phono In/Speaker Out
THD (20 Hz – 20 kHz) <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
Frequency response(RIAA deviation) ±0.3 dB (20 Hz - 20 kHz)

Power consumption
at ECO Standby mode 0.5 Watts*
at Control Standby mode 0.6 Watts**
OFF mode (Power switched OFF) 0 Watts

Dimensions & Weight
Gross dimensions (W x H x D) 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4")
Net weight 4.9 kg (10.8 lbs)
Shipping weight 5.9 kg (13.0 lbs)
