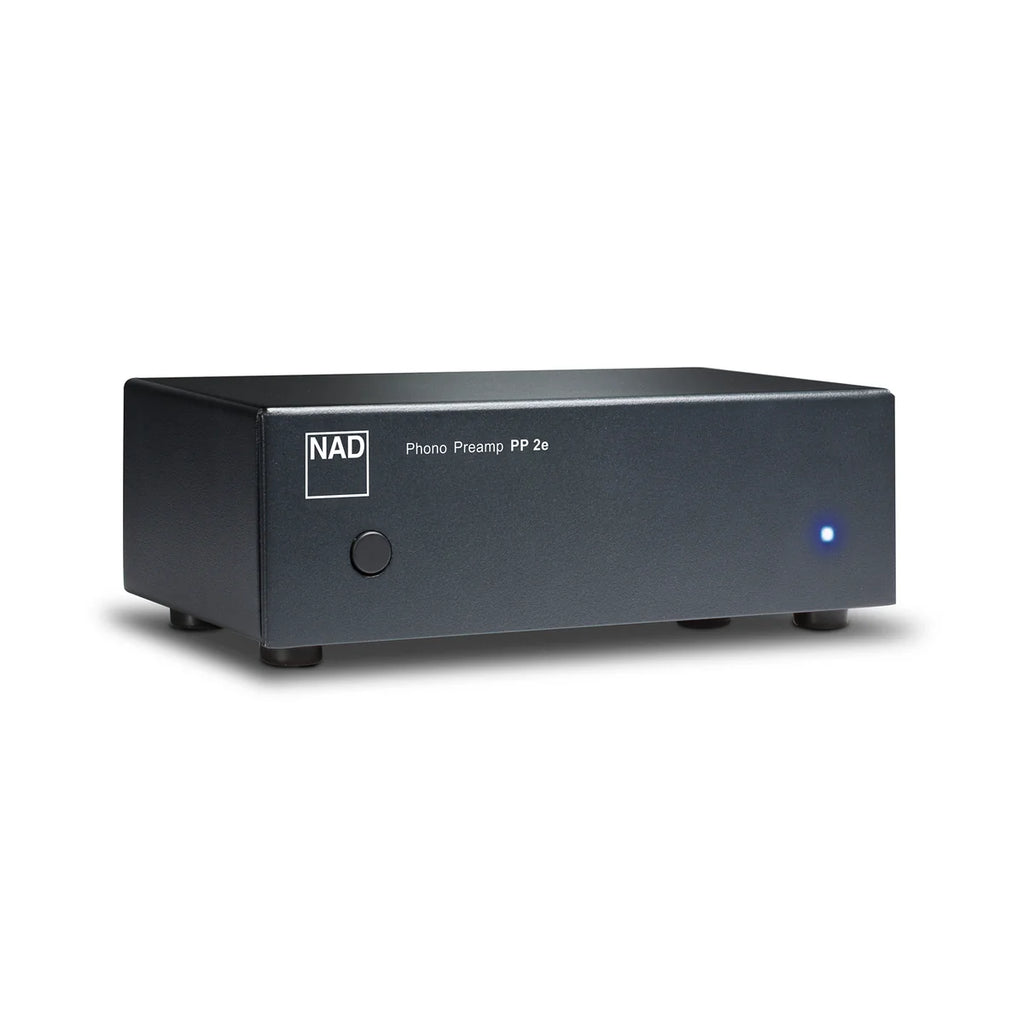

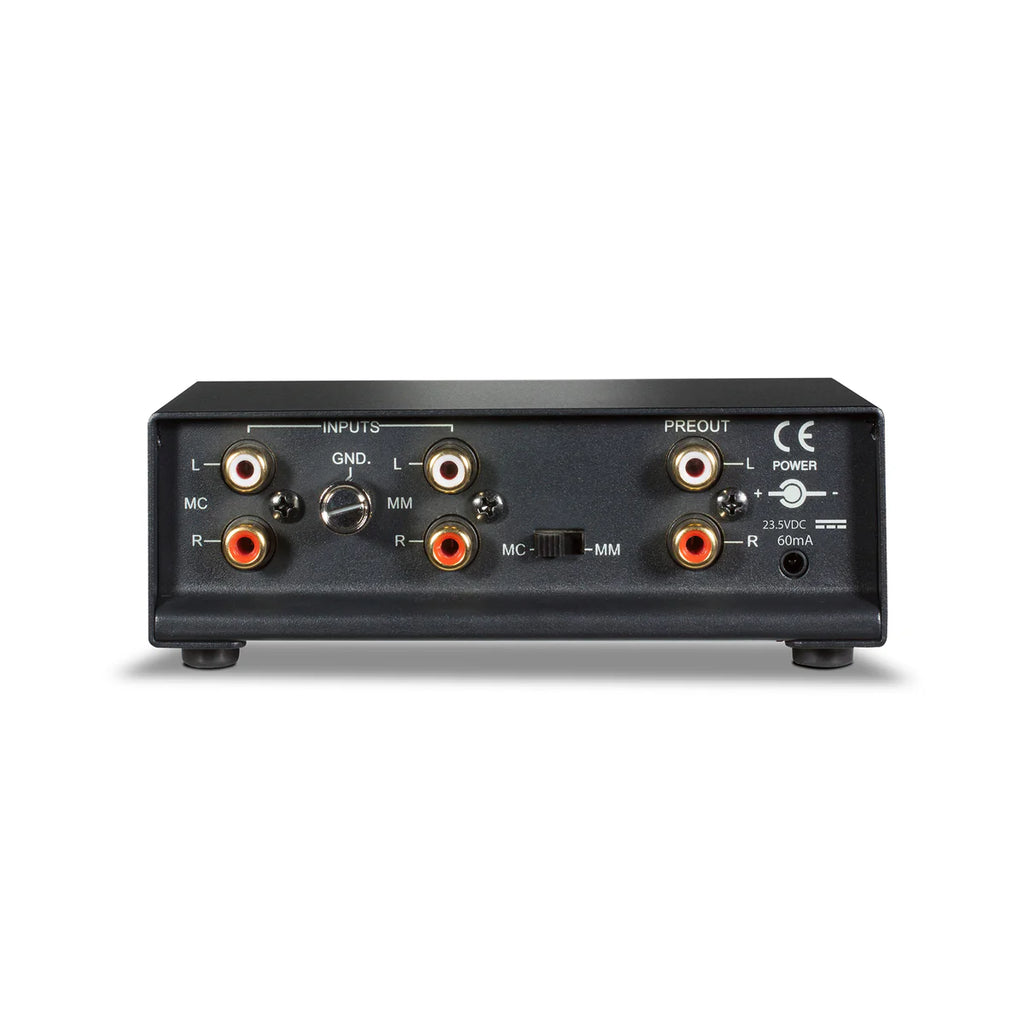

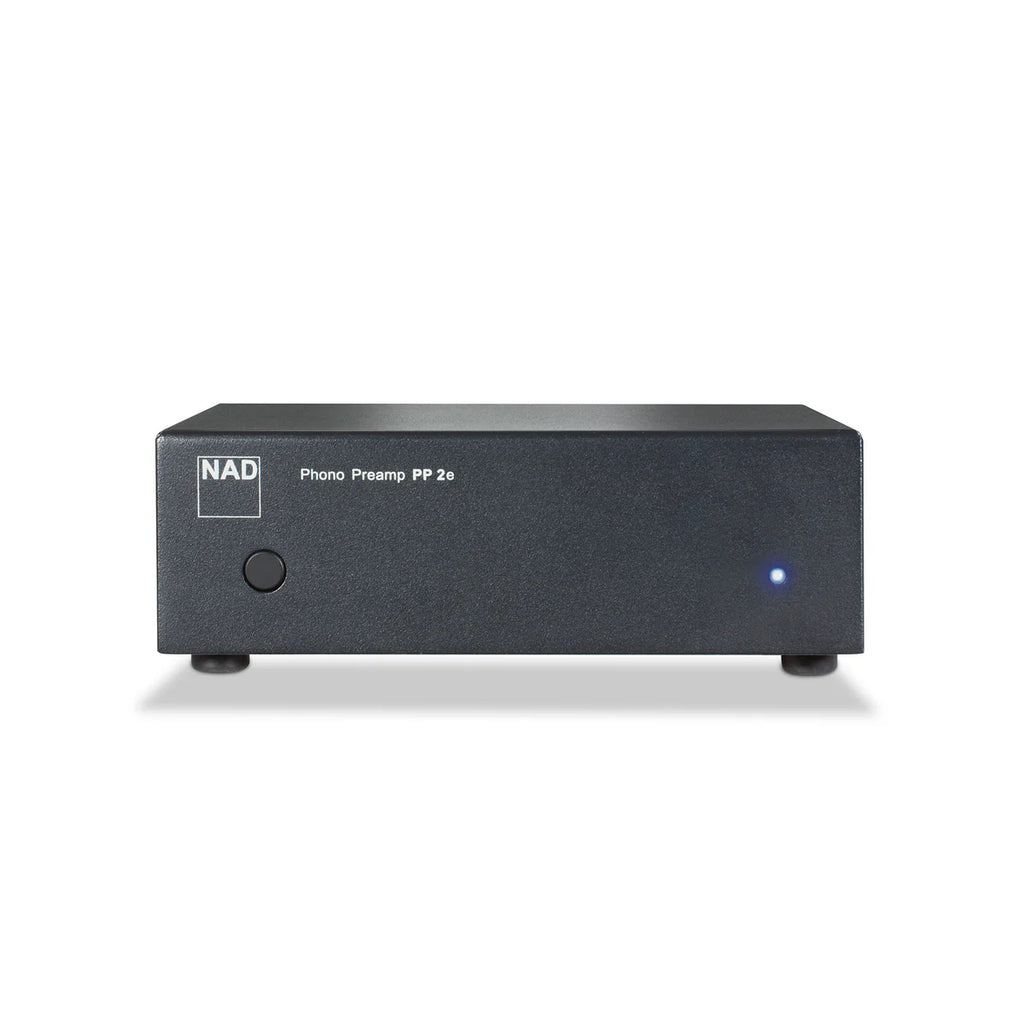

NAD PP 2E PHONO PREAMPLIFIER

NAD PP 2E PHONO PREAMPLIFIER

$299.00
Skip to product information
NAD PP 2E PHONO PREAMPLIFIER
  • NAD PP 2E PHONO PREAMPLIFIER
  • NAD PP 2E PHONO PREAMPLIFIER
  • NAD PP 2E PHONO PREAMPLIFIER
  • NAD PP 2E PHONO PREAMPLIFIER
  • NAD PP 2E PHONO PREAMPLIFIER
  • NAD PP 2E PHONO PREAMPLIFIER
NAD PP 2E PHONO PREAMPLIFIER

NAD PP 2E PHONO PREAMPLIFIER

$299.00

The NAD PP 2e Phono Preamplifier delivers low-noise and wide-band amplification for MM and MC cartridges, helping records sound open and detailed. Its carefully engineered RIAA stage supports a well-balanced presentation across diverse pressings, bringing greater clarity to systems with basic or absent phono inputs. An external 24-volt supply helps maintain stable performance, while gold-plated sockets ensure reliable long-term connection to your turntable and amplifier. With Auto Power Down and a compact footprint, the PP 2e offers a simple, musical upgrade to any vinyl system.

Key Features:

  • Low-noise, wide-band phono stage for clear vinyl playback
  • Supports MM and MC cartridges for broad turntable compatibility
  • Precision RIAA equalisation for accurate tonal balance
  • External 24-volt power supply for stable, quiet operation
  • Gold-plated input sockets for reliable signal transfer
  • Compact design suitable for modern hi-fi setups
  • Auto Power Down feature for energy-efficient use
  • Line-level output for easy integration with amplifiers and receivers
  • High-quality components used throughout the signal path
  • LED power indicator for simple operational status

MC
Input Impedance (R and C) 100 Ohm + 180pF
Gain at 1kHz 60dB
Input Sensitivity (ref. 200mV output) 0.3mV
Signal to Noise Ratio 78dB (A weighted, with cartridge connected)
Input Overload (20Hz/1kHz/20kHz) 0.8/9/84mV
Rated Distortion (THD 20Hz - 20kHz) <0.03%
RIAA Response Accuracy ±0.3dB

MM
Input Impedance (R and C) 47 kilohm + 200pF
Gain at 1kHz 35dB
Input sensitivity (ref. 200mV output) 2.5mV
Signal to Noise Ratio 80dB (A weighted, with cartridge connected)
Input overload (20Hz/1kHz/20kHz) 10/102/950mV
Rated Distortion (THD 20Hz - 20kHz) <0.03%
RIAA response accuracy ±0.3dB

Line Out
Output Impedance 100 Ohm
Maximum Output Level 5.3V

General Specifications
AC Supply External 23.5V DC
Dimensions excl. Power supply (W x H x D) 135 x 49 x 72mm 5 5/16 x 1 15/16 x 2 7/8"
