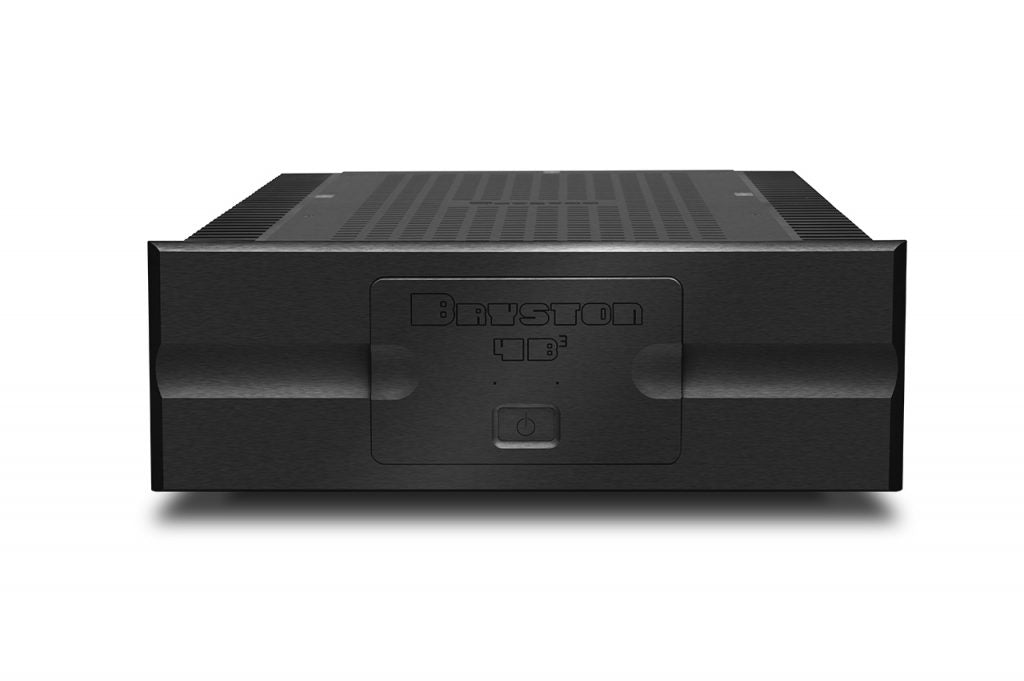

Bryston 4B Cubed Dual-Mono Power Amplifier

Bryston 4B Cubed Dual-Mono Power Amplifier

$7,695.00
Color

Legendary Power. Extraordinary Precision. Uncompromising Musical Performance.

The Bryston 4B Cubed (4B³) is one of high-end audio's most respected power amplifiers, combining remarkable musical transparency with the authority to drive demanding loudspeakers effortlessly.

Delivering 300 watts per channel into 8 ohms and 500 watts per channel into 4 ohms, this sixth-generation amplifier continues a tradition of exceptional engineering that began with the original Bryston 4B in 1978.

Whether you're building a reference two-channel stereo system or upgrading your existing amplification, the 4B Cubed delivers the control, clarity, and dynamic performance necessary to bring your favorite recordings to life.

True Dual-Mono Engineering

The 4B Cubed features two completely independent amplification channels, each with its own power supply and transformer.

This sophisticated architecture minimizes interaction between channels, contributing to outstanding stereo separation, precise imaging, and a beautifully defined soundstage.

Instruments occupy their own space, vocals remain naturally focused, and the subtle ambience of the original recording emerges with exceptional clarity.

Power That Brings Music to Life

With 300 watts per channel into 8 ohms and 500 watts into 4 ohms, the 4B Cubed provides substantial power reserves for demanding loudspeakers.

From delicate acoustic passages to powerful orchestral crescendos, the amplifier delivers effortless dynamics without sacrificing refinement.

Its high-current design offers exceptional control over loudspeaker drivers, producing tight, articulate bass, natural midrange detail, and smooth, extended high frequencies.

Patented Bryston Cubed Series Technology

At the heart of the 4B Cubed is Bryston's patented Salomie input circuit, engineered to dramatically reduce distortion while preserving the integrity of the original audio signal.

This advanced design allows subtle musical details, complex harmonics, and spatial information to emerge with extraordinary transparency.

Rather than adding coloration, the 4B Cubed faithfully reproduces the character of the recording.

Exceptional Flexibility

The 4B Cubed offers both balanced XLR and single-ended RCA inputs, allowing seamless integration with a wide variety of premium preamplifiers.

Selectable 23 dB and 29 dB gain settings provide additional flexibility for system matching.

For applications requiring even greater output, the amplifier can operate in bridged-mono mode, delivering approximately 900 watts into 8 ohms.

Built for Serious Listening

Every Bryston amplifier reflects a commitment to engineering excellence and long-term reliability.

The 4B Cubed features a robust aluminum chassis, passive convection cooling without fans, and sophisticated SoftStart circuitry for controlled power-up.

Designed and manufactured in Canada, this amplifier is built to provide years of exceptional musical enjoyment.

Key Features

  • 300 watts per channel into 8 ohms

  • 500 watts per channel into 4 ohms

  • Approximately 900 watts into 8 ohms in bridged-mono mode

  • True dual-mono architecture with independent transformers and power supplies

  • Patented Bryston Salomie input circuitry

  • Balanced XLR and unbalanced RCA inputs

  • Selectable 23 dB or 29 dB gain

  • Exceptional low-distortion performance

  • Fanless convection cooling

  • SoftStart power management

  • DC trigger for system integration

  • Premium aluminum construction

  • Designed and manufactured in Canada

Technical Specifications

Amplification

  • Type: Dual-mono stereo power amplifier

  • Channels: 2

  • Output power, 8 ohms: 300 watts per channel

  • Output power, 4 ohms: 500 watts per channel

  • Bridged-mono output, 8 ohms: Approximately 900 watts

  • Total harmonic distortion plus noise: Less than 0.005% at rated power

  • Frequency response: Below 1 Hz to 100 kHz (-3 dB)

  • Selectable gain: 23 dB / 29 dB

  • Signal-to-noise ratio: -112 dB (RCA), -117 dB (XLR)

  • Input impedance: 7.5 kΩ unbalanced; 30 kΩ positive / 6 kΩ negative balanced

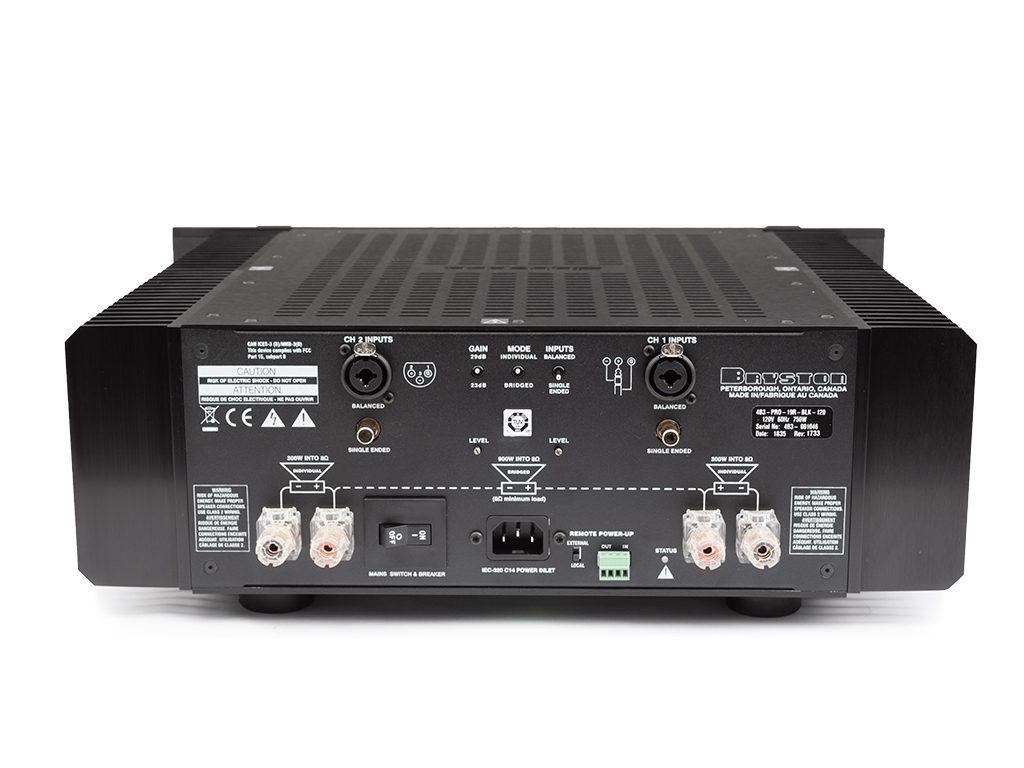

Connections

  • Balanced analog inputs: XLR

  • Unbalanced analog inputs: RCA

  • Speaker outputs: Heavy-duty binding posts

  • Control: DC trigger

Physical Specifications

  • Available finishes: Black or Silver

  • Faceplate widths: 17 or 19 inches

  • Height: 6.3 inches

  • Depth: 15.5 inches; 17.75 inches with handles

  • Weight: 42 lbs

  • Cooling: Passive convection

  • Country of manufacture: Canada
