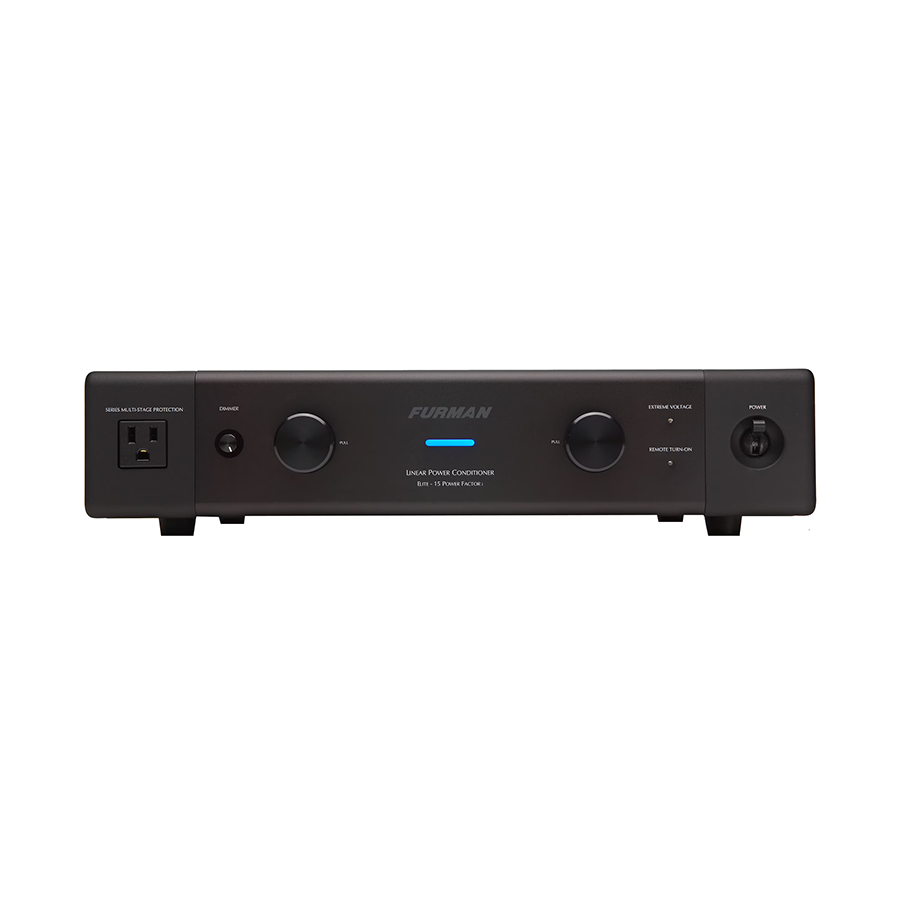

Furman Elite-15 PF I 15A High-Current Power Conditioner
$1,039.95
Skip to product information
Furman Elite-15 PF I 15A High-Current Power Conditioner
$1,039.95
ELITE-15 PF I is specialized for the enthusiast whose system is built around power-hungry components. If you have a demanding high-current power amplifier or a large, powerful subwoofer, you need a conditioner that won't compress dynamics during explosive audio peaks. This unit is specifically engineered to provide a massive reserve of instantaneous current that allows your amplifier and subwoofer to perform with the full weight and visceral impact you've been missing.
Technical Specifications
Family
Elite Series
Line Voltage
120 Volts
Number of Outlets
13
Number of Isolated Banks
3

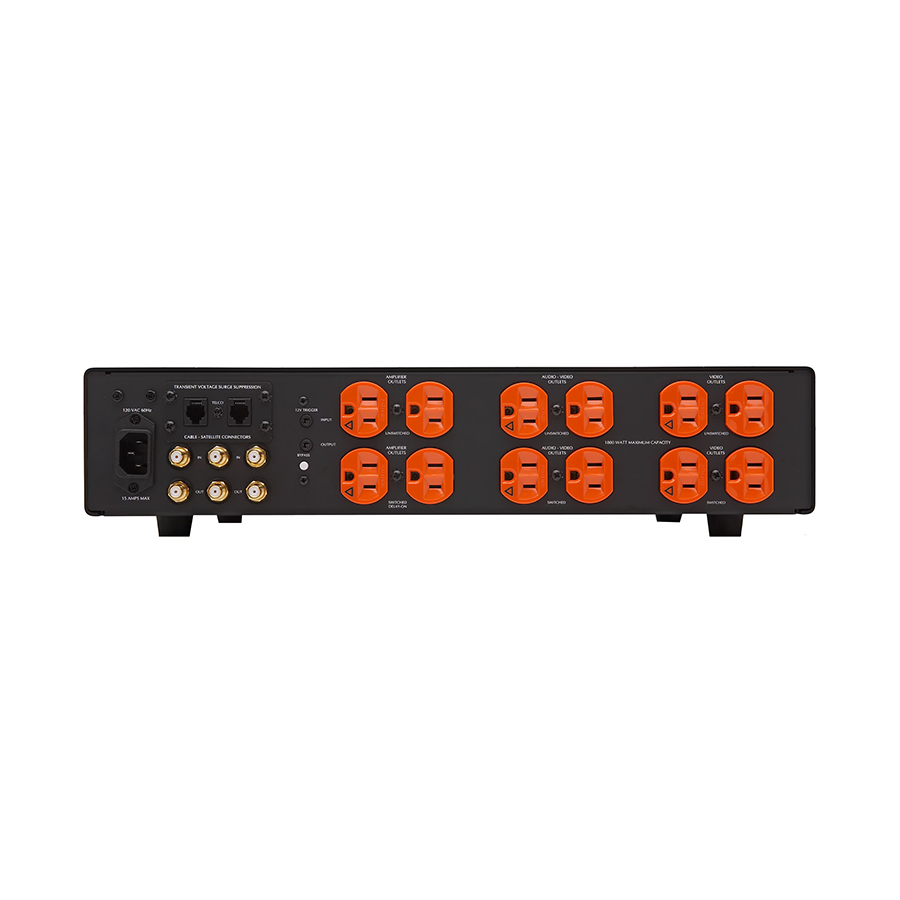

Outlet Description
1 (linearly filtered outlet, front panel)
4 (linearly filtered audio-video outlets, 2 switched via 12V trigger)
4 (linearly filtered outlets with additional ultrasonic filtering for video components, 2 switched via 12V trigger)
4 (Power Factor Technology amplifier outlets, 3 amps RMS reserve, reactive load, over 45 amps peak charge, 2 switched with 5 second delay via 12V trigger)
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
No
Front Media Light(s)
2 Retractable LED lamps
Control
On/Off switch and light dimmer knob on front panel, 12 Volt triggering for remote control
Voltage Regulation
No
Compliance
NRTL-C
USB Charging
N/A
Low Voltage Trigger
12 V, In/Out
Dimensions
4" H x 17" W x 14.75" D (Standard 2 RU height without feet)
Weight
15 lbs
Power Consumption
12 Watts for display and control circuits independent of actual load
AC Protection
AC Protection Technology
- Extreme Voltage Shutdown
- Series Multi-Stage Protection
- Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff
85V
Over-Voltage Shutoff
140V ±3V
Maximum Current Rating
15 Amps
Initial Clamping Level
188 VAC peak @ 3,000 Amps
Filtration
Filtration Technology
LiFT
Filtration Rating
- >40 dB from 10 kHz to 100
- >80 dB from 100 kHz to 1 GHz
(Linear attenuation curve from 0.05 to 100 ohms line impedance)
Signal Line Protection
- 1 Tel
- 3 Cable/Satellite
Voltage Protection Rating
UL 1449 3rd Edition, 3,000A
