KEF Ci3160RLM-THX In-Wall Speaker with MAT™ | THX Certified Ultra
$2,299.99
Skip to product information
KEF Ci3160RLM-THX In-Wall Speaker with MAT™ | THX Certified Ultra
$2,299.99
Reference-Level Home Theater Performance. Virtually Invisible.
Experience extraordinary cinematic sound without compromising your room's design. The KEF Ci3160RLM-THX brings the engineering and acoustic performance of KEF's acclaimed R Series into a sophisticated architectural in-wall speaker.

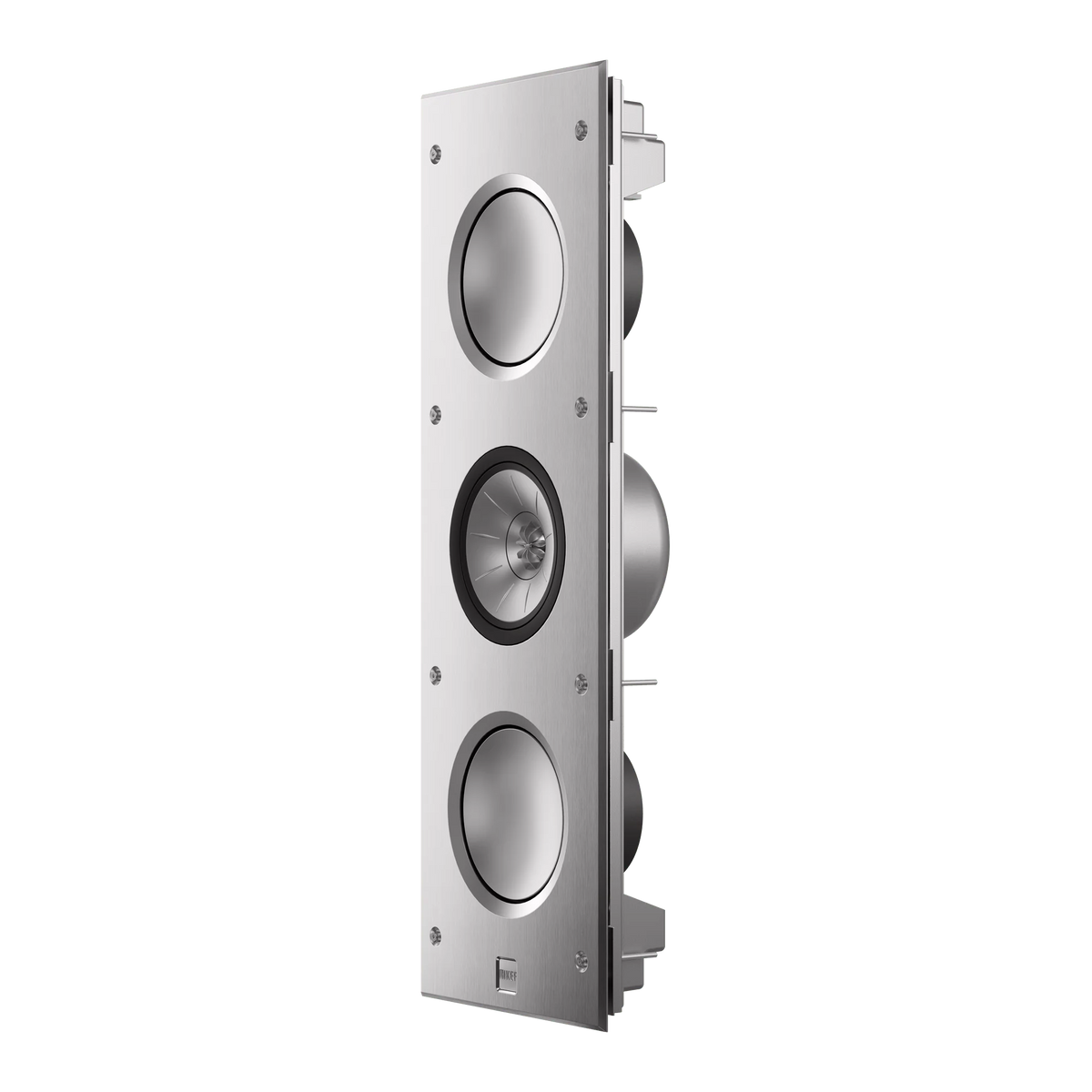

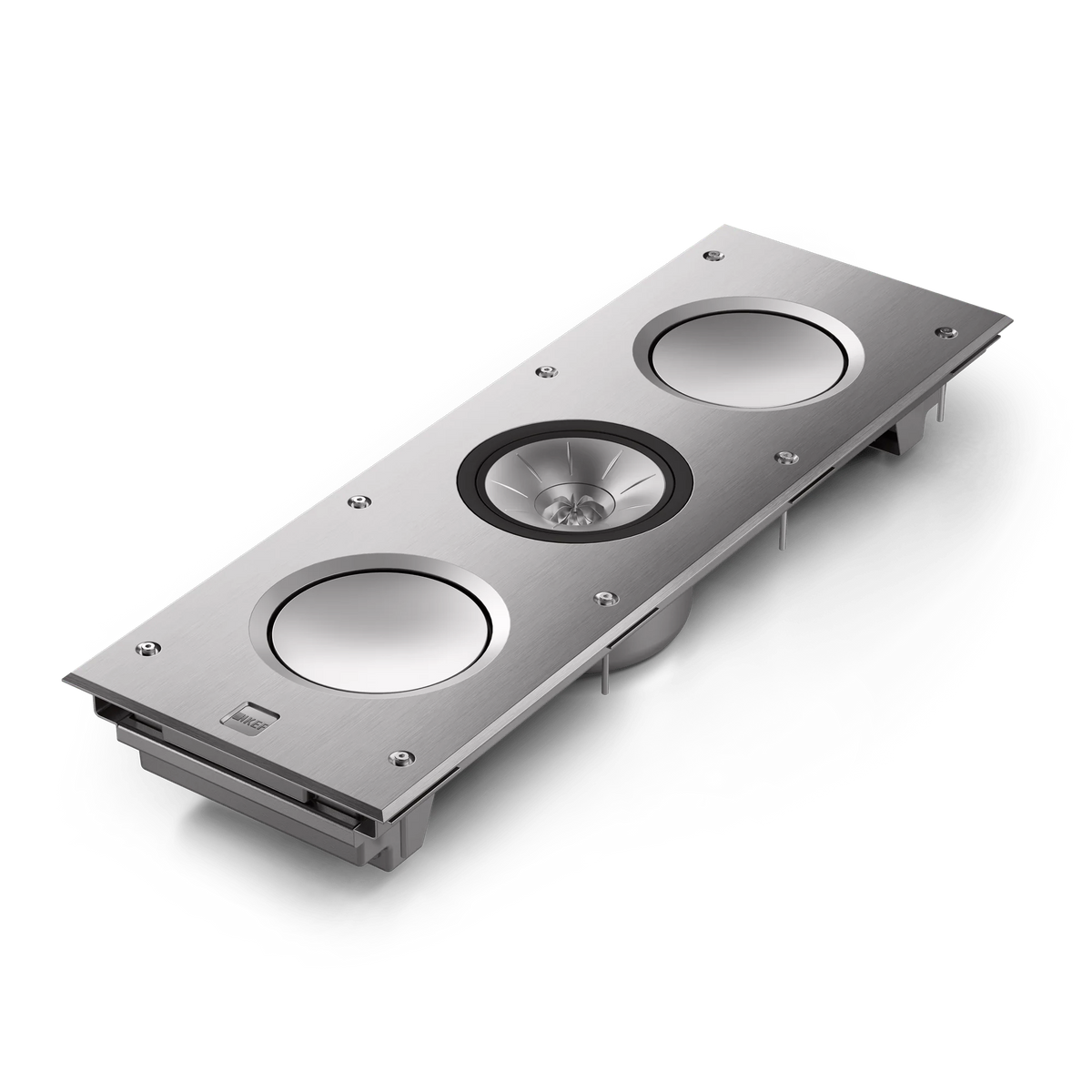

Designed for demanding home theater installations, this THX Certified Ultra speaker combines KEF's revolutionary Metamaterial Absorption Technology (MAT™), 12th-generation Uni-Q® driver array, and dual 6.5-inch hybrid aluminum bass drivers to deliver remarkable clarity, powerful dynamics, and exceptional sound dispersion.
Whether used as a left, center, or right channel in a premium home theater, the Ci3160RLM-THX delivers an immersive listening experience while remaining discreetly integrated into your walls.
Advanced Acoustic Engineering
12th-Generation Uni-Q® Driver Array
KEF's signature Uni-Q technology positions the tweeter at the acoustic center of the midrange driver, creating a more coherent sound source. The result is precise imaging, natural dialogue reproduction, and remarkably consistent sound throughout the listening area.
Metamaterial Absorption Technology (MAT™)
KEF's groundbreaking MAT technology absorbs 99% of unwanted sound from the rear of the tweeter, dramatically reducing distortion and coloration. Hear greater detail, transparency, and realism in everything from quiet dialogue to the most demanding movie soundtracks.
THX Certified Ultra Performance
Engineered to meet THX's demanding performance standards, the Ci3160RLM-THX delivers the dynamic range, output capability, and sonic accuracy expected from a serious home theater system.
Dual 6.5-Inch Hybrid Aluminum Bass Drivers
Two dedicated bass drivers provide exceptional low-frequency control, impact, and definition, complementing the Uni-Q array for a powerful, balanced presentation.
Premium Architectural Construction

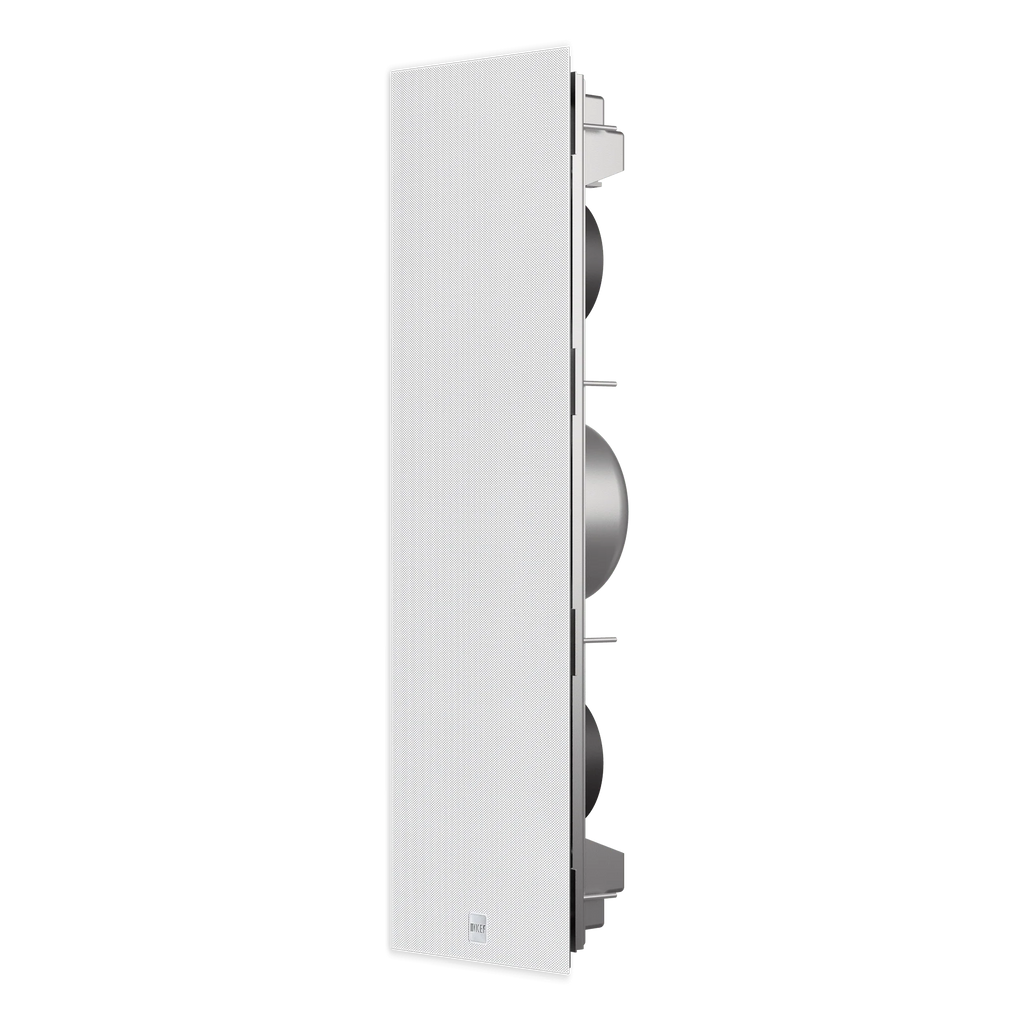

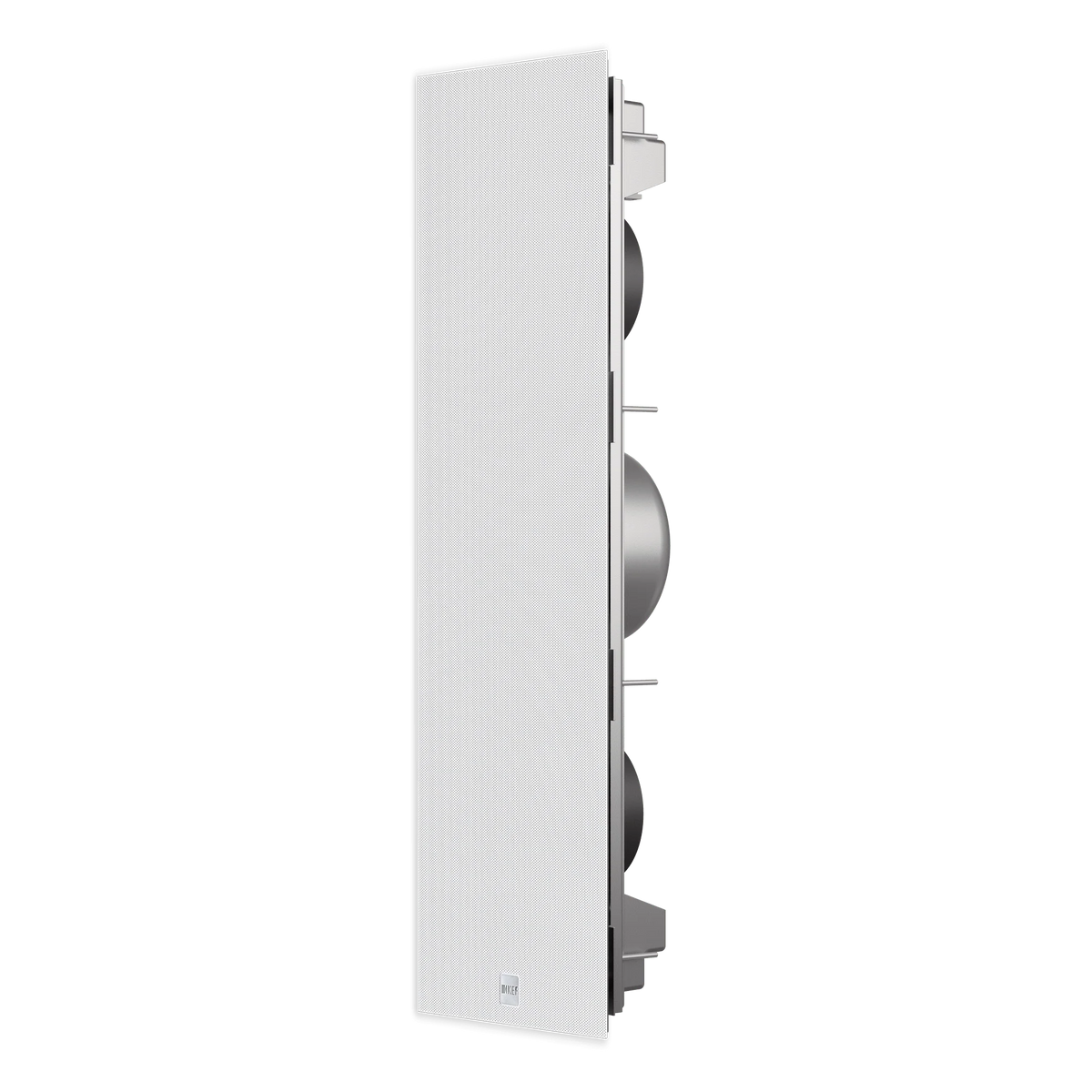

A precision-machined 5.5 mm aluminum baffle provides a rigid, vibration-resistant foundation for the drivers. The included paintable magnetic metal grille allows the speaker to blend seamlessly into your room.
Key Features
-
THX Certified Ultra architectural in-wall speaker
-
KEF 12th-generation Uni-Q driver array
-
Metamaterial Absorption Technology (MAT™)
-
Dual 6.5-inch hybrid aluminum bass drivers
-
Three-way speaker design
-
Precision-machined aluminum front baffle
-
Wide 150-degree nominal sound coverage
-
Paintable magnetic metal grille included
-
Suitable for premium left, center, and right home theater channels
-
Designed for discreet, high-performance custom installations
Technical Specifications
| Specification | Details |
|---|---|
| Speaker Type | Three-way architectural in-wall |
| Series | KEF R Series |
| THX Certification | THX Certified Ultra |
| Frequency Response | 43 Hz – 28 kHz (±6 dB, open-backed) |
| Frequency Range | 33 Hz – 45 kHz (−10 dB) |
| Sensitivity | 89 dB (2.83 V/1 m) |
| Nominal Impedance | 4 ohms |
| Recommended Amplifier Power | 50–350 watts |
| Maximum SPL | 110 dB at 1 meter |
| Nominal Coverage | 150° |
| Bass Drivers | 2 × 6.5-inch hybrid aluminum |
| Midrange Driver | 6.5-inch Uni-Q |
| Tweeter | 1-inch vented aluminum dome with MAT |
| Crossover Frequencies | 640 Hz, 2.6 kHz |
| Dimensions (H × W × D) | 26.77 × 9.06 × 4.16 inches |
| Cutout Dimensions (H × W) | 25.98 × 8.23 inches |
| Mounting Depth | 3.9 inches |
| Ideal Rear Volume | 60 liters |
| Weight | 26.4 lbs. |
| Finish | Aluminum Silver |
| Included | Paintable magnetic metal grille and installation accessories |
The Perfect Foundation for a Serious Home Theater
For dedicated theaters where sound quality matters as much as aesthetics, the KEF Ci3160RLM-THX is an exceptional solution.
Its controlled dispersion, outstanding dialogue intelligibility, and dynamic capabilities make it particularly well suited for acoustically transparent projection screens, allowing the front speakers to be positioned directly behind the image for a more authentic cinematic experience.
Combine three matching Ci3160RLM-THX speakers for the front soundstage with complementary KEF architectural surround and Atmos speakers to create a remarkably cohesive, immersive theater.
Expert Home Theater Solutions at Audible Elegance
At Audible Elegance, we specialize in premium audio, home theater, and custom entertainment systems. Our team can help you select the right KEF speakers, amplification, and supporting components for your room and listening preferences.
Visit our Montgomery, Ohio showroom to discuss your project and discover what a properly designed home theater can deliver.
Audible Elegance — Shop Online. Hear It Here.
Sold individually. Professional installation recommended.
