Martin Logan Dynamo Foundation 10 Subwoofer

The MartinLogan Dynamo Foundation 10 delivers powerful, controlled low-frequency performance from a compact enclosure at an approachable price.

A custom 10-inch Ultra-Rigid Polypropylene woofer is powered by MartinLogan's Magnitude MT-400 Class-D amplifier, producing up to 400 watts peak and 200 watts continuous output.

A high-resolution 200MHz DSP engine with 56-bit processing helps keep bass clean and controlled while providing useful adjustment for integration with both stereo and home theater systems.

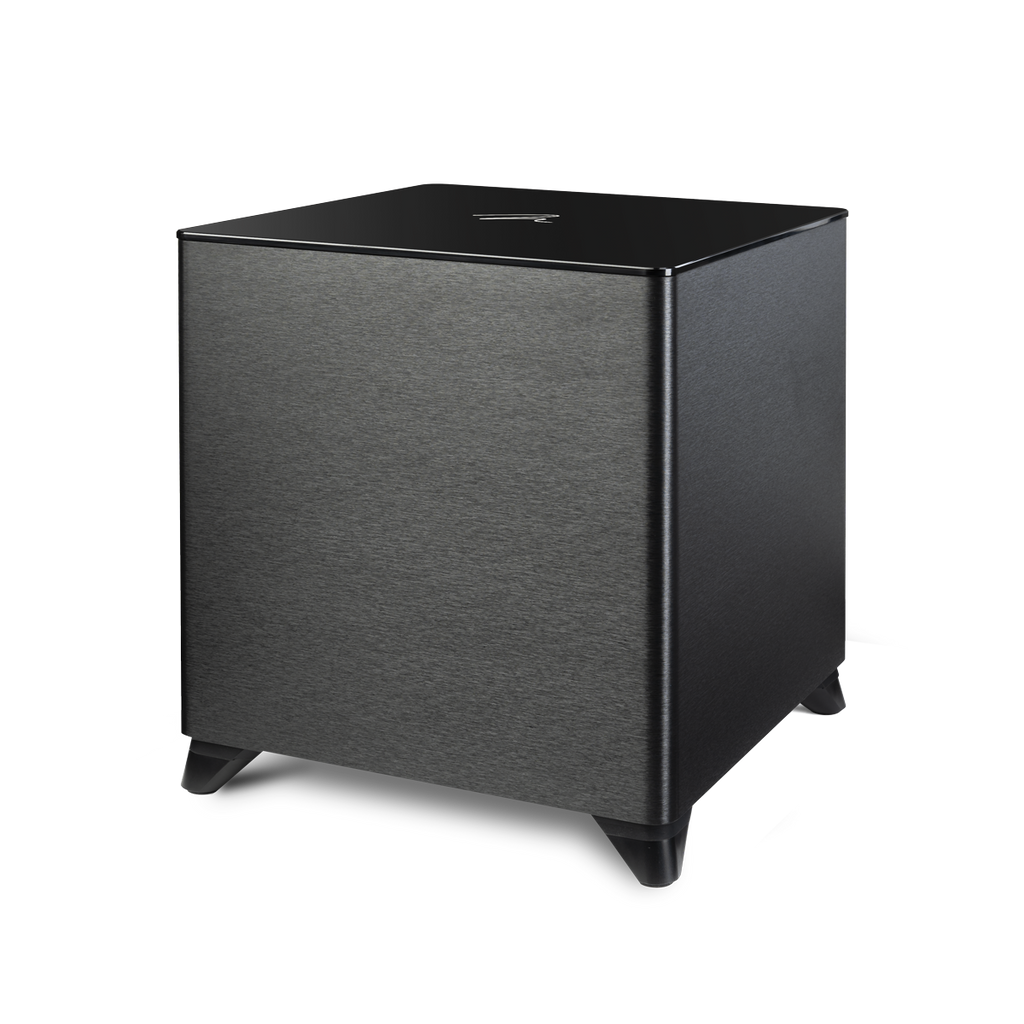

The sealed, down-firing design gives the Dynamo Foundation 10 a clean appearance and flexible placement options. Stereo RCA and dedicated LFE connectivity make integration straightforward, while MartinLogan's optional WSK-1 kit can provide wireless signal transmission when running a subwoofer cable is impractical.

Highlights

• 10-inch Ultra-Rigid Polypropylene woofer

• 400W peak / 200W continuous Class-D amplification

• High-resolution 200MHz DSP engine

• 56-bit signal processing

• Sealed cabinet

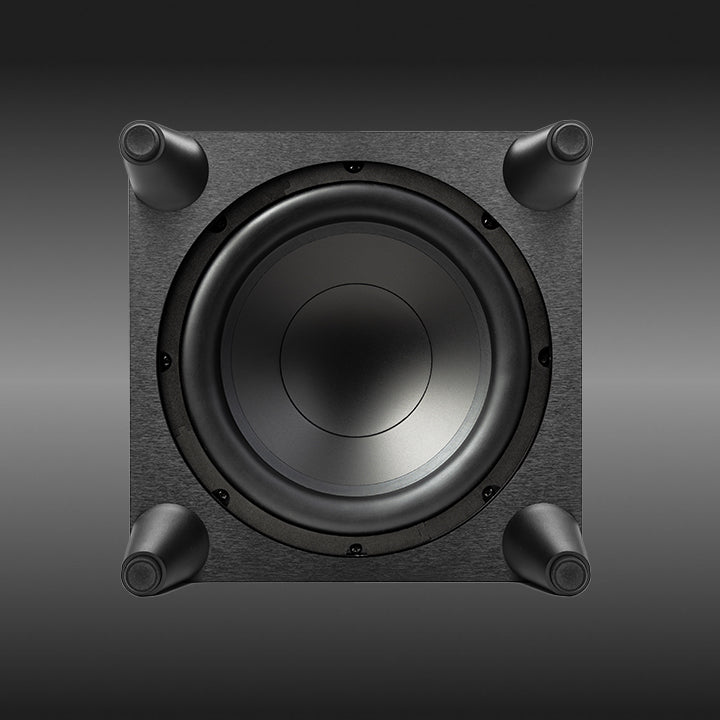

• Down-firing woofer

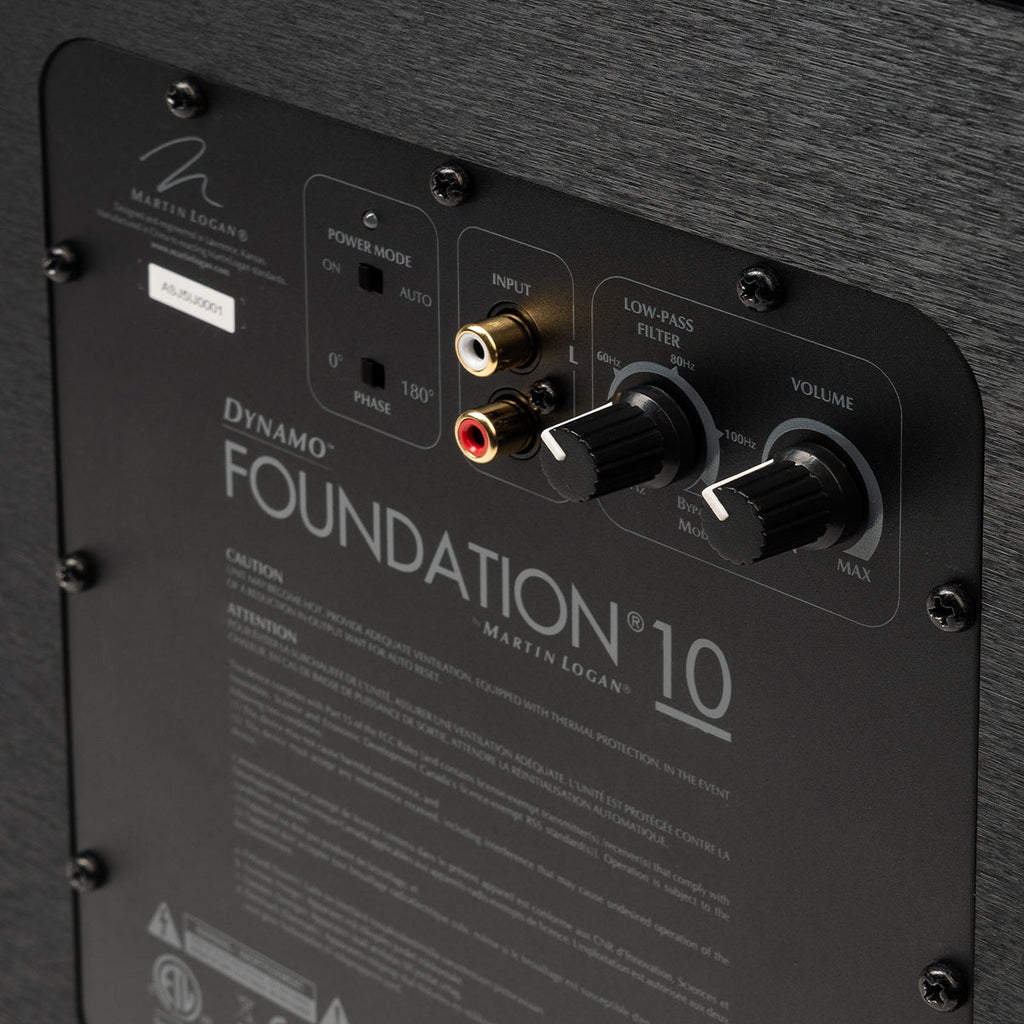

• LFE and stereo RCA inputs

• Adjustable level

• Adjustable low-pass filter

• 0° / 180° phase control

• Auto power mode

• Optional WSK-1 wireless compatibility

• Compact 13-inch enclosure

Specifications

Frequency Response: 25–200 Hz ±3 dB via LFE
Woofer: 10-inch high-excursion Ultra-Rigid Polypropylene cone
Amplifier: Magnitude MT-400
Peak Power: 400 watts
Continuous Power: 200 watts
Amplifier Type: Class D
DSP: 200MHz / 56-bit processing
Cabinet: Sealed MDF with reinforced woofer baffle
Inputs: Left RCA, Right/LFE RCA
Low-Pass Filter: 40 Hz to Bypass
Phase: 0° / 180°
Power Mode: On / Auto
Wireless: Optional WSK-1 kit
Maximum Power Draw: 250W
Standby Draw: 0.5W
Dimensions: 13" H × 12-3/4" W × 12-3/4" D
Weight: 23.8 lbs
Finish: Brushed black vinyl with high-gloss top
Warranty: 3 years when purchased new from an authorized MartinLogan dealer, subject to MartinLogan warranty terms.
