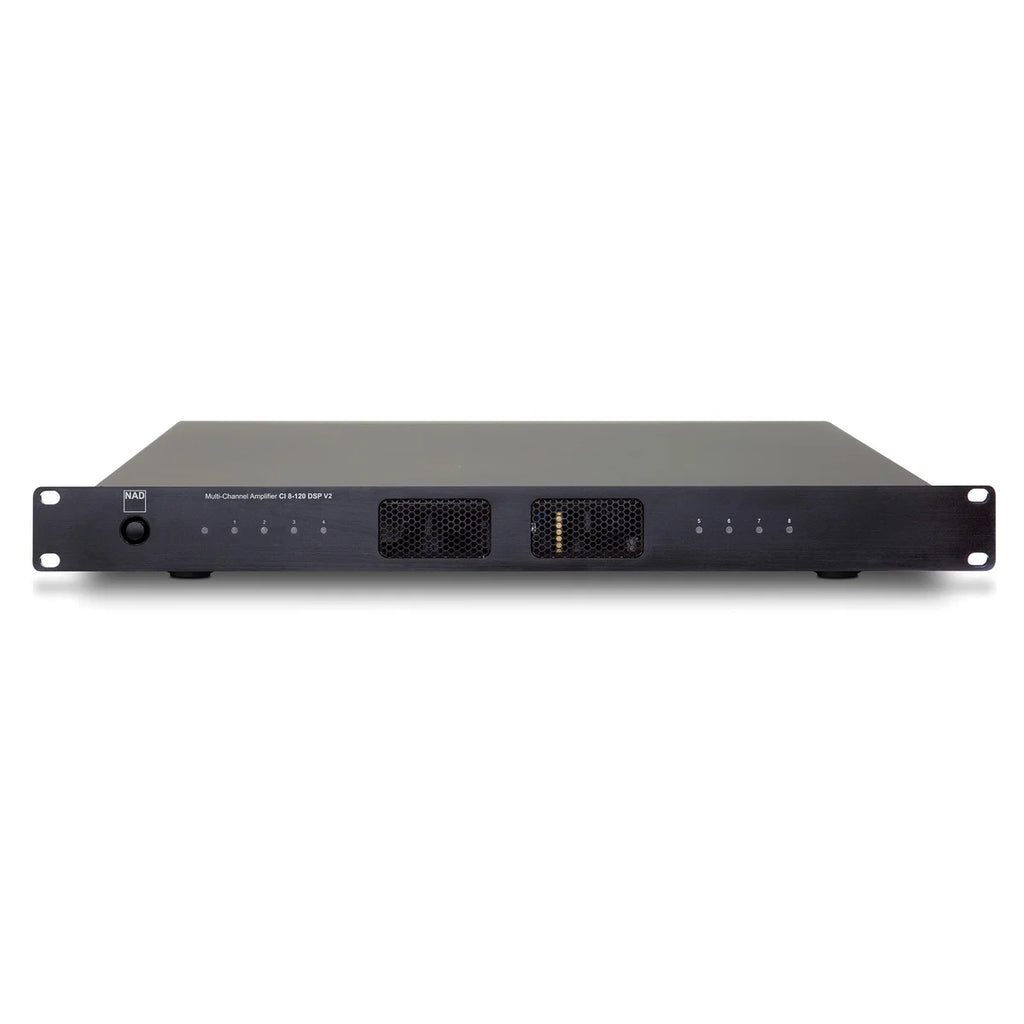

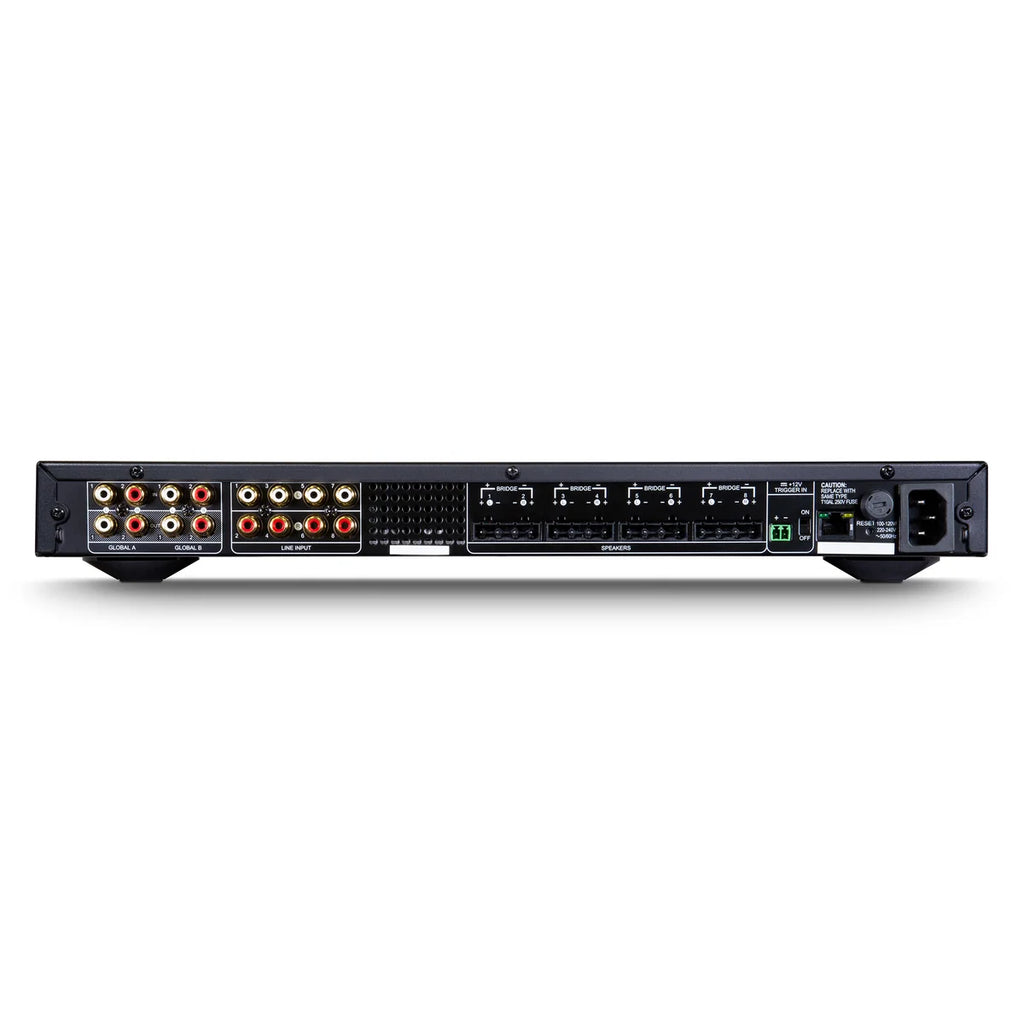

NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER

NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER

$3,299.00
Skip to product information
NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER
  • NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER
  • NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER
  • NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER
  • NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER
NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER

NAD CI 8-120 DSP v2 MULTI-CHANNEL NETWORK POWER AMPLIFIER

CALL FOR PRICE

513-793-3737

The NAD CI 8-120 DSP V2 Multi-Channel Amplifier is designed to deliver clean, efficient power and system optimisation. A real workhorse amplifier the CI8-120 DSP v2 can drive the most demanding loads, while integrated DSP provides installers with a refined balance of performance and precision. Built on NAD’s HybridDigital™ amplification platform, the CI 8-120 DSP V2 offers efficient operation, low heat, and stable long-term performance. Ideal for whole-home audio and multi-zone systems where the most robust amplifier is required in a compact 1u rack space, it combines amplification and DSP in a compact, rack-ready solution tailored for modern CI environments.

Key Features:

  • 8 channels of HybridDigital amplification with custom Hypex UcD output stages
  • 120 watts per channel Full Disclosure Power, Continuous into 8 ohms, all channels running.
  • Setup and configuration via intuitive webUI.
  • Integrated DSP for system optimisation
  • Compact 1U Rack-mount chassis
  • Line-level inputs for flexible system integration Automation and trigger support for system control Engineered for reliable, long-term operation
  • Bridgeable channel pairs for increased output where required

GENERAL SPECIFICATIONS
Continuous Output Power into 8 Ohms >120 W (all channels driven)
Continuous output power into 4 ohms >135 W (all channels driven)
Continuous output power into 8 ohms at Bridged mode >200 W (all channels driven)
THD (20 Hz – 20 kHz) <0.05 % (1 W to 100 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (all channels driven) >130 W (1 kHz 8 ohms  0.1 % THD)
Clipping power into 8 ohms at Bridged mode >300 W (1 kHz 0.1 % THD - all channels driven)
IHF dynamic power (all channels driven) 8 ohms:  125 W
IHF dynamic power (two channels driven) 8 ohms:  145 W
IHF dynamic power (Bridged mode, all channels driven) 8 ohms:  440 W
IHF dynamic power (Bridged mode, two channels driven) 8 ohms:  480 W
Peak output current >20 A (1 ohm, 1 ms)
Damping Factor >110 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response ±0.5 dB (20 Hz - 20 kHz)
Channel separation >70 dB (1 kHz)
Maximum undistorted input level 2900 mV
Input sensitivity (for 120 W in 8 ohms, maximum volume) 1150 mV
Analog Input  audio sense threshold (one channel with signal) 3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level 3 - 30 Vdc
Standby power 0.5W

DIMENSION AND WEIGHT
Dimensions (W x H x D)* 483 x 45 x 435 mm (19 1/16 x 1 13/16 x 17 3/16”)
Shipping Weight 10 kg (22 lbs)
