The NAD CS1 Endpoint Network Streamer brings modern music streaming to your existing hi-fi system, AV receiver, or powered speakers. Designed for listeners who value musical performance as much as convenience, the CS1 easily connects to your component of choice and lets you play music directly from the apps you already use. Carefully engineered digital circuitry ensures a more open and natural presentation that allows your system to perform at its best. Compact, affordable, and easy to integrate, the CS1 is a meaningful upgrade that enhances both your system and your everyday listening experience.

Key Features:

  • Network music streamer designed to add streaming capability to existing hi-fi systems
  • Support for Apple AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, DLNA, and Roon
  • App-based playback control using supported third-party music applications
  • High-resolution audio support up to 24-bit/192kHz
  • Differential digital architecture for low noise and wide dynamic range
  • Stereo analogue RCA outputs for connection to amplifiers or powered speakers
  • Optical and coaxial digital outputs for connection to AV receivers or external DACs
  • Dual-band Wi-Fi and Ethernet connectivity for reliable network performance
  • Built-in Bluetooth for direct wireless playback from compatible devices
  • Compact design with minimalist enclosure

AUDIO
THD + N (20 Hz – 20 kHz) <0.03% 20-20 kHz -1dBFS output
Signal-to-Noise ratio -94dB (ref 2V)
Frequency response 20-20 kHz +/-0.3dB; 50 kHz -3dB
Native sampling rate Up to 192 kHz
Bit depth 16-24
Supported audio file format LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability
Supported 3rd party service provider Spotify Connect (also support for Spotify Lossless), Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon
DAC TI PCM5142
Processor ARM® Cortex™ -A53, Quad-Core, 1.5GHz per core

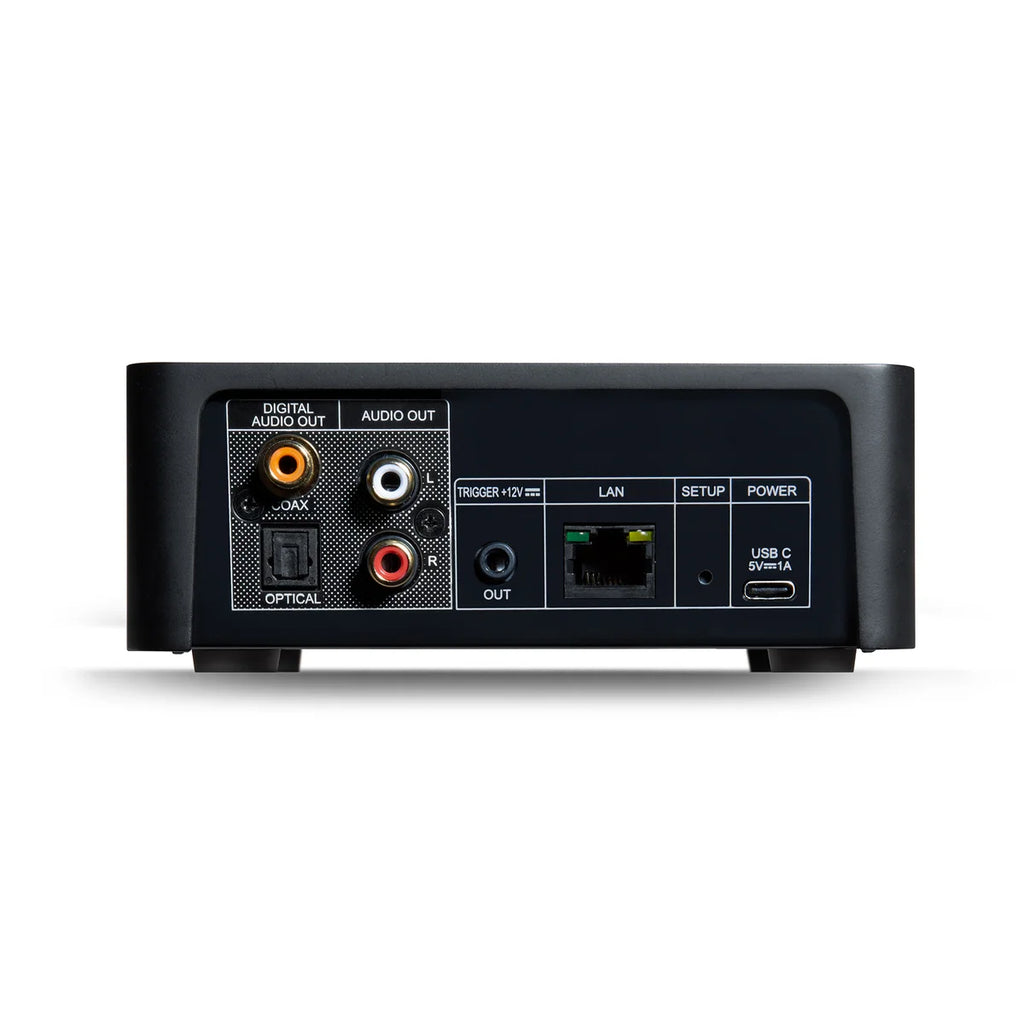

CONNECTIONS
Power AC adapter Input: 100-240V AC 0.3A Output: 5V DC 1A
Network connectivity Ethernet RJ45 100 Mbps Wi-Fi 5 (802.11ac 2.4GHz/5 GHz) DLNA/UPnp*
Bluetooth Bluetooth 5.2 BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP
NFC NFC for easy Bluetooth connection
12V Trigger Out 3.5mm Mini-jack x 1
Analog Out RCA x 1
Coaxial Out RCA 75 ohms
Optical Out TOSLINK x 1
USB IN USB C for AC adapter

GENERAL
Status Indicator Front Panel LED
Function Button Front Panel Function Button
Power Consumption 0.5W Network Standby
Finish Black

DIMENSION AND WEIGHT
Gross dimensions (W x H x D)** 140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches)
Net Weight 1.5 kgs / 3.3 lbs
Shipping Weight 1.7 kgs / 3.8 lbs
