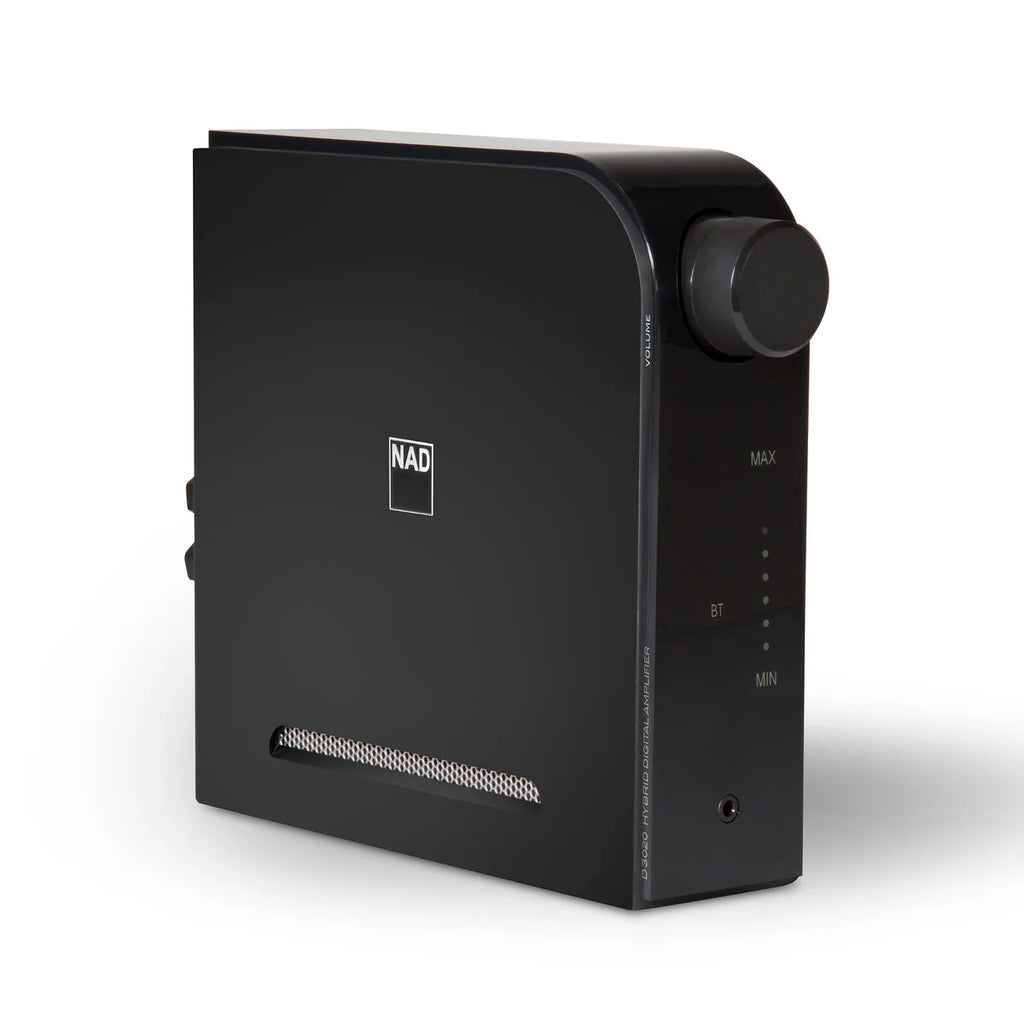

The NAD D 3020 V2 HybridDigital DAC Amplifier carries forward the spirit of the original NAD 3020 in a form designed for modern listening. Compact and efficient, it delivers clear, engaging sound from a wide range of sources, including Bluetooth streaming, vinyl playback, and high-resolution digital inputs. HybridDigital amplification and a carefully refined DAC stage allow loudspeakers to perform with confidence and clarity, whether the D 3020 V2 is part of a compact hi-fi system or a high-quality desktop setup where audio matters. The result is a versatile amplifier that brings high-fidelity sound naturally into everyday listening environments.

Key Features:

  • 30 watts per channel of HybridDigital amplification with NAD PowerDrive™
  • High-resolution 24-bit/192kHz DAC for detailed digital playback from computers and digital sources
  • Bluetooth® with aptX® support for high-quality wireless streaming
  • Moving Magnet phono input with accurate RIAA equalisation and infrasonic filtering

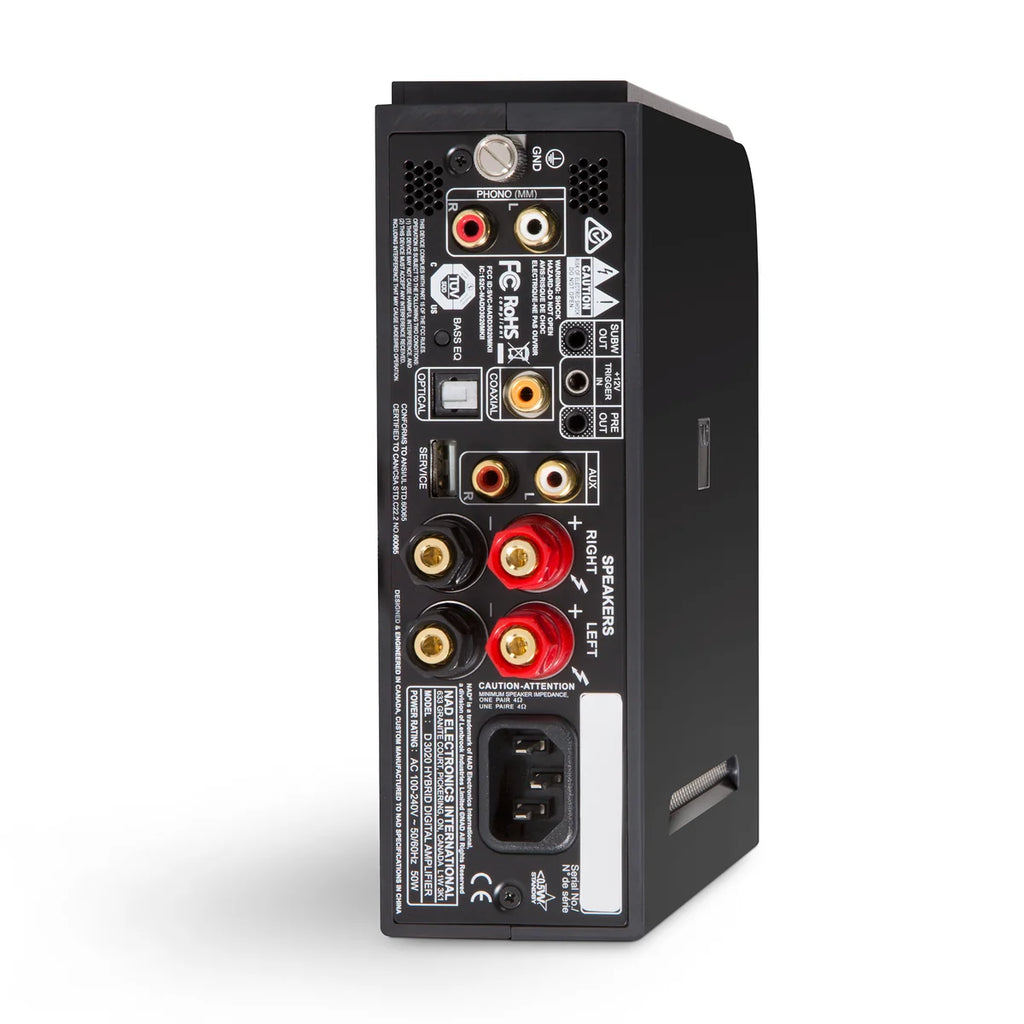

  • Optical and coaxial digital inputs for TVs, computers, and disc players
  • Analogue line input for legacy audio sources
  • Pre-out connection for adding a subwoofer or external power amplification
  • Bass EQ and soft clipping circuits for improved performance with compact speakers
  • Highly efficient design with low standby power consumption
  • Award-recognised design for sound quality and compact versatility

Audio Specs
Rated Power at 8 ohms 2 x 30 Watts
IHF Dynamic Power 8 ohms 2 x 60 Watts
4 ohms 2 x 100 Watts
2 ohms 2 x 150 Watts
Signal/Noise Ratio (A-weighted, ref. 1 Watt) ≥90dB
Channel Separation 1kHz ≥75dB
10kHz ≥65dB
Channel Balance 0 ±0.3dB
Frequency Response (20Hz - 20kHz) 0dB to -0.3dB
Total Harmonic Distortion ≤0.005%
Maximum input level 5V
IMD (SMPTE) 0.02%
IMD (CCIF) 0.003%

MM Phono Input
Phono Signal-to-Noise Ratio >82 dB (200 ohms source, A-weighted, ref. 500 mV out) 76 dB (MM cartridge source, IHF; A-weighted, ref. 500 mV out)
Input sensitivity 1.15 mV (ref. 500 mV out, Volume maximum)
Maximum input signal at 1kHz >90 mVrms (ref. 0.1 % THD)
Frequency response ±0.3 dB (20 Hz - 20 kHz)

General
Standby Power ≤0.5 Watts
Supports bit rate/sample rate up to 24/192 (via Digital Audio input)
Unit Dimensions (W x H x D) Gross 58 x 186 x 219mm
Net Weight 1.38kg (3.05lb)
Shipping Weight 2.1kg (4.6lb)
