Onkyo Icon M-80 Stereo Amplifier
The Onkyo M-80 Power Amplifier uses a three-stage Inverted Darlington Amplifier. This three-stage Inverted Darlington Amplifier has a very low output impedance and powerfully drives speakers with a large current. Additionally, by keeping NFB (negative feedback) low, it’s not affected by extra noise from the speaker, offering a powerful yet highly resolving and informative sound. The M-80’s output stage transistors are in parallel configuration, providing excellent instantaneous current supply capability, further enhancing the rise of sound and the sense of power. The driver stage of the M-80 amplifier uses DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) which reduces noise in the ultra-high frequency band with DIDRC’s High Slew Rate Design and helps produce the natural sound of an analog record.
The Onkyo M-80 Power Amplifier features custom high current power supply to provide, dynamic full-range sound, and an extrusion aluminum heat sink that suppresses vibration. The addition of high-quality 10000uF capacitors custom-made exclusively for Onkyo, Hi-Fi grade terminals (both speaker output and audio input terminals), copper bus bars, and a robust vibration-proof front panel ensure powerful, world-class playback.
The M-80 housing consists of two aluminum side panels and a steel top panel. This three-piece housing construction increases rigidity and improves seismic resistance for altogether improved sound quality.
Product info:
- 130 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD with 2 channels driven (FTC Power Output Rating)
- 200 watts x 2 into 4 ohms
- 4 ohm - 16 ohm stable (speakers A or B)
- 8 ohm - 16 ohm stable (speakers A + B)
- frequency response: 10-100,000 Hz (+1dB, -3 dB)
- signal-to-noise ratio: 106 dB
- front-panel A/B speaker switching
- high-current Class AB amplifier design

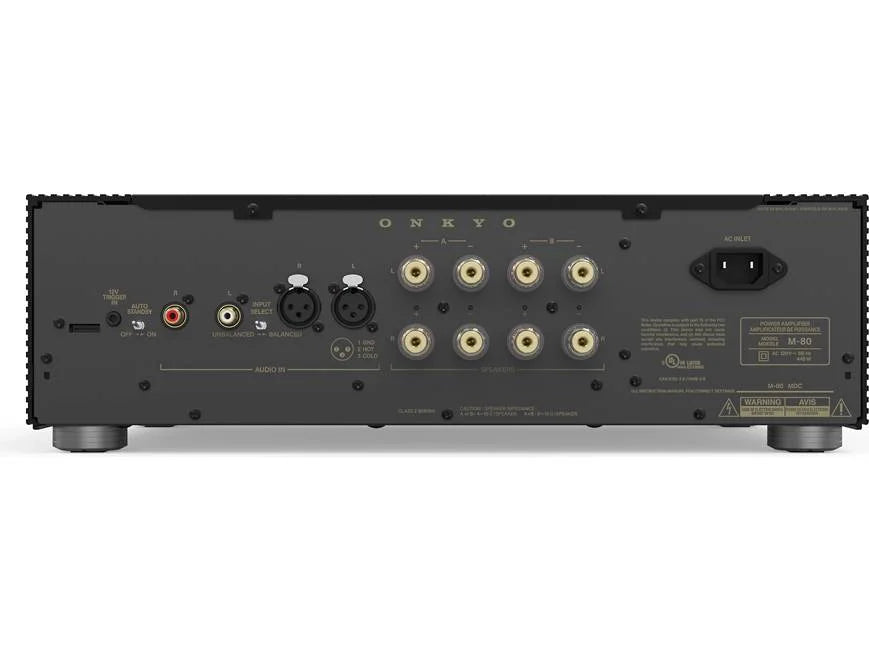

Connections and controls:
- stereo balanced XLR
- unbalanced RCA inputs
- rear-panel input control switch

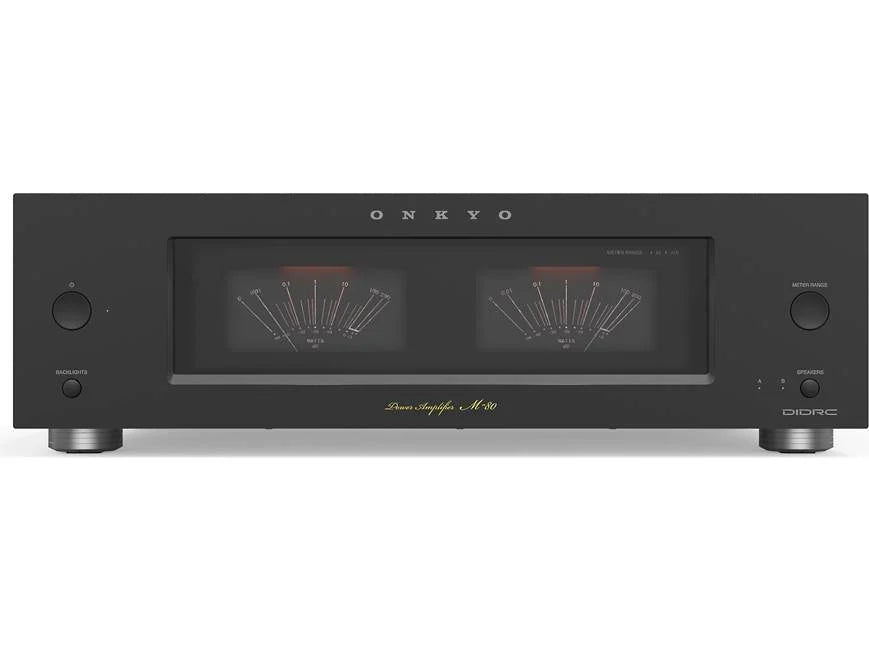

- front-panel power meters show the instantaneous peaks in the signal for each channel
- front-panel backlight control button
- rear-panel 12-volt trigger input for control from other devices (mono mini-cable included)
- copper binding post terminals accept bare wire, banana plugs, and spade lugs
Warranty and dimensions:
- 17.1"W x 5.3"H x 113.66"D
- weight: 25.1 lbs.
- warranty: 2 years
