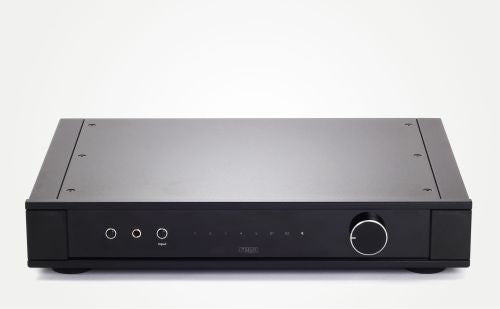

REGA Elex Mk4

The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.

Key Features

• 72 W per channel into 8 Ω / 90 W into 6 Ω
• High quality moving magnet phono stage
• High performance Rega DAC circuit for digital inputs
• 2 x Digital inputs - 1 x optical and 1 x Co-Axial
• Headphone output
• 4 Line level inputs
• New custom design case
• Thermal Cut-Out
• Lifetime warranty against manufacture defects

Technical Specs

Power Amplifier Output (at rated 230/115 V Supply voltage)

72 W into 8 Ω
90 W into 6 Ω

Weight

11 Kg (24.25 Lbs)

Supported Sampling Rates

32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Supported Bit Depths

16 to 24 bit

Power Consumption

250 W

Power consumption in ‘off mode’

0.0 W

Output Sensitivity (at rated inputs)

Record Output 164mV
Pre-amplifier Output 625mV

Dimensions

(W × H × D)

432 x 82 x 340 (D includes loudspeaker terminals)

17.01 × 3.23 × 13.39 inches

Power Management

For best audio performance this product needs to reach an optimum temperature for the bias current to stabilise. Therefore, this product does not include a power management function Please note: leaving this product on for long periods will result in increased energy consumption.
