Rogue Audio DragoN Monoblocks (Pair)
CALL TO ORDER
513-793-3737
With the success of the DragoN Stereo Amp Rogue was looking to make a defining statement with their award winning tube/Class D hybrid amplifiers. An amplifier that blends brute power with musicality, finesse, and accuracy. Amplifiers that authoritatively control virtually any loudspeakers.

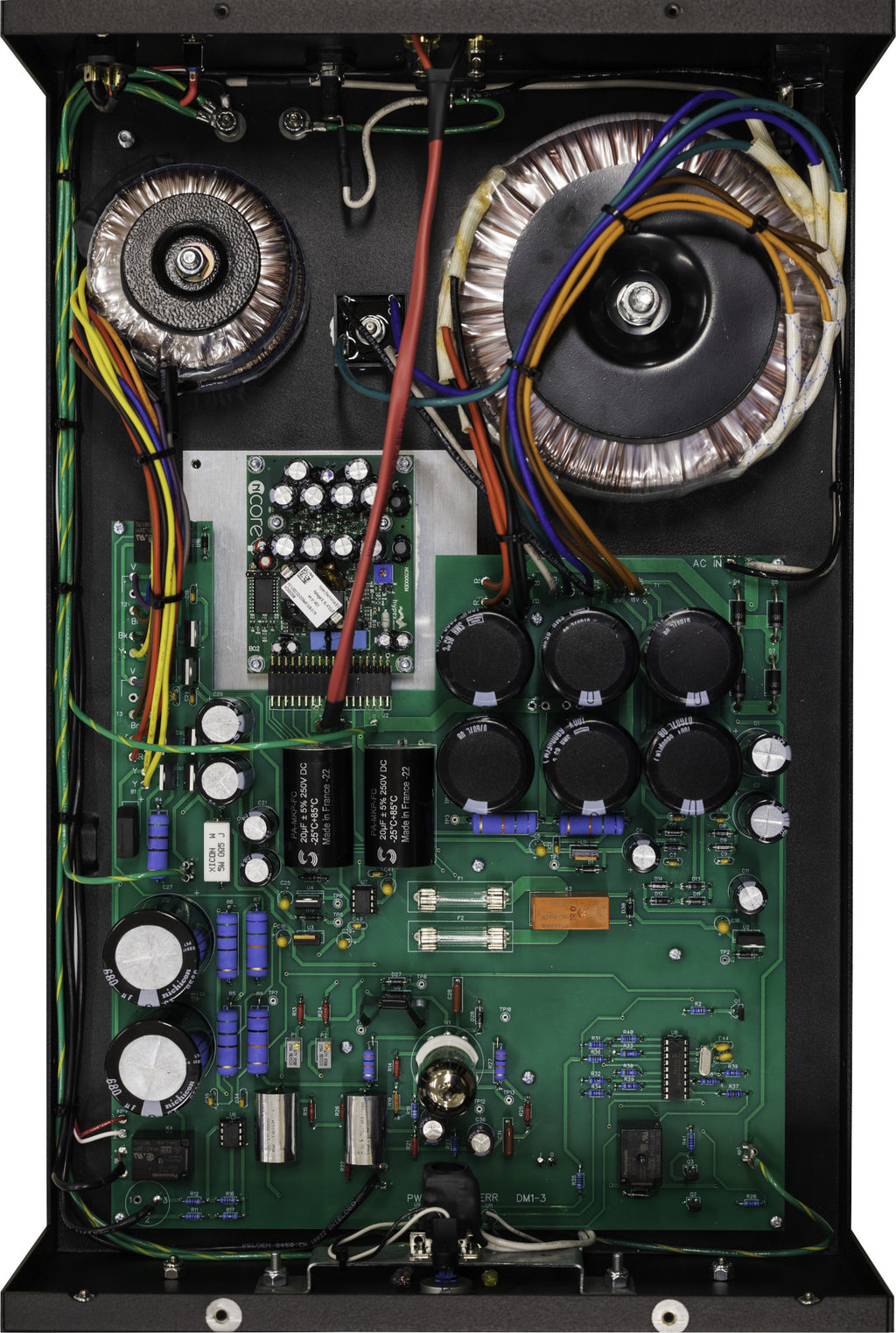

These new amplifiers are much more than simply a tube circuit placed in front of a class D output section. Our proprietary tubeD circuit topology actually integrates the tube section into the amplifier yielding the smooth natural sound that only a tube amp can provide. With uncanny accuracy the Dragon Monoblocks deliver stunning dynamics and transparency without any of the edgy, etched, or grainy sound that often accompanies solid state designs. A low power standby mode allows critical components to remain on and fully warmed up without wasting electricity or tube life. A slow start feature allows the tubes to warm up gradually to eliminate turn-on noise and greatly extend tube life. Three massive linear power supplies are used to power the amplifier circuitry and ultra-high quality parts are used throughout the amplifier. Combined with a stunning appearance, you can be certain that you are investing in an amplifier that truly represents the very leading edge of audio technology.
Features & Highlights
-
Hypex NCore amplification modules for exceptional power, clarity, and control
-
Massive high-storage-capacity power supply for demanding musical passages
-
Hybrid tube design featuring two carefully matched 12AU7 signal tubes
-
True balanced XLR and single-ended RCA inputs
-
Heavy-duty, gold-plated XLR and RCA connectors
-
Premium gold-plated speaker binding posts
-
Short-circuit protection for reliable operation
-
Standby circuitry for solid-state components
-
Soft-start circuitry designed to extend tube life
-
Precision-machined, engraved ½-inch aluminum faceplate
-
Heavy 2-ounce copper circuit boards
-
High-quality precision components throughout
-
Individually tested, burned-in, and auditioned
-
Designed and manufactured entirely in the USA
-
Optional 12V trigger for system integration
-
3-year limited warranty (6 months on vacuum tubes)
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier Configuration | Hybrid tube/Class D monoblock |
| Output Power | 325 watts into 8 ohms / 525 watts into 4 ohms |
| Amplification Technology | Hypex NCore |
| Vacuum Tubes | 2 × 12AU7 |
| Frequency Response | 20Hz–20kHz (±1dB) |
| Total Harmonic Distortion | Less than 0.1% typical; less than 1% at rated power |
| Input Sensitivity | 0.75V RMS |
| Input Impedance | 30kΩ |
| Analog Inputs | Balanced XLR and single-ended RCA |
| Dimensions | 12.5" W × 5.5" H × 19" D |
| Weight | 33 lbs. per amplifier |
| Power Requirements | 120V/240V, 50/60Hz |
| Warranty | 3 years limited; 6 months on tubes |
American-Made Performance
Every Rogue Audio DragoN monoblock amplifier is designed, built, tested, and auditioned in the USA, combining the musical richness of vacuum tubes with the exceptional power and control of modern NCore amplification.
